0355460000

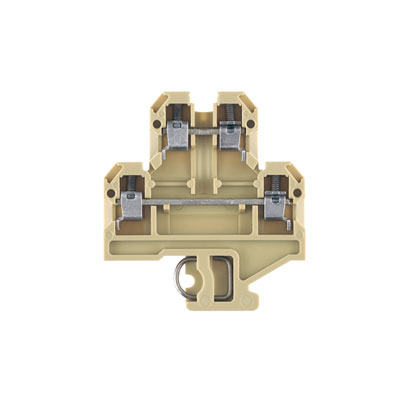

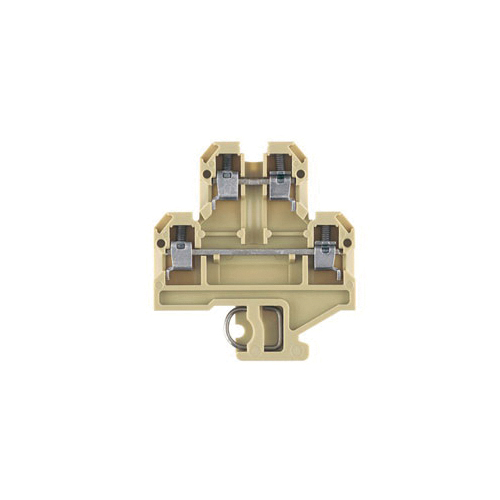

Weidmuller 0355460000 Electrical Terminal
Part Number # 0355460000
SKU # 972258
$163.75 / 25Each
Typical price:$172.80 / Each
Weidmuller 0355460000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0355460000 |
| SKU #: | 972258 |
| Amperage Rating: | 32 A |
| Dimensions: | 50 mm H x 6 mm W x 59.5 mm D |
| Series: | SAK |
| Temperature Rating (Degrees F): | -50 to 100 deg C |
| Terminal Size: | M3 |
| Torque Rating: | 0.5 to 0.1 N-m |
| Type: | Double Tier Feed-Through Modular |
| Wire Size: | 4 sq-mm |
| Connection type: | Screw |
| Country of origin: | RO |
| Material: | Polyamide 66 |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190094560 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$163.75 / 25Each
Typical price:$172.80 / Each
Quantity:
- Klippon Terminal Block, Double Tier Feed-Through Modular, Series: SAK, 500 V, 32 A, 4 sq-mm Wire, 9 mm Wire Strip Length, M3 Terminal, 0.5 to 0.1 N-m Torque, DIN Rail Mounting, Screw Connection, -50 to 100 deg C, Polyamide 66, Beige/Yellow, 50 mm H x 6 mm W x 59.5 mm D Dimensions
0355460000 Item Features
- Klippon connect with clamping yoke technology
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
0355460000 Standards
RoHS Compliant|UL File No. E60693|UL 94 V-2 Flammability Rating|UL/cULus File No. E60693|CSA File No. 12400-130|ATEX File No. TUEV18ATEX8210U|IECEX File No. IECEXTUR18.0020U|EN 60079-7: Ex eb II C Gb|Ex 2014/34/EU Label: II 2 G D|CE Certified|EAC Certified|KEMA-KEUR Certified|PRMS CertifiedSKU #972258Part Number #0355460000UNSPSC39121410UPC04008190094560
Image provided may only be a representation of final product and may include optional equipment
