Brand: Weidmuller

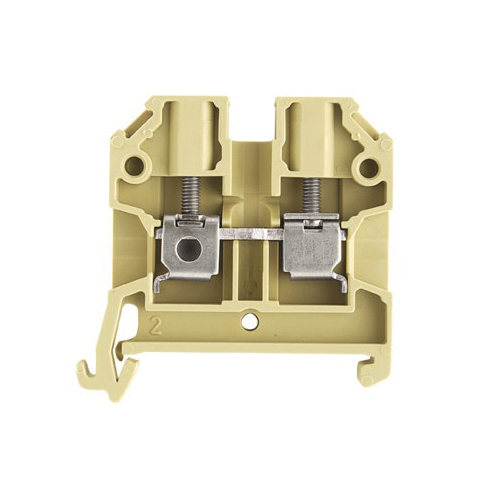

Weidmuller 0443660000 Klippon Feed-Through Terminal Block
Image Disclaimers Message
Brand: Weidmuller
Weidmuller 0443660000 Klippon Feed-Through Terminal Block
Brand: Weidmuller
Weidmuller 0443660000 Klippon Feed-Through Terminal Block
Part #:0443660000
SKU #: 42418
$217.00/100EA
Key Features
Part #:0443660000
SKU #: 42418
Brand: Weidmuller
Amperage Rating: 32 A
Dimensions: 1.772 in H x 0.256 in W x 1.732 in D
Number of Poles: 2
Series: SAK
Temperature Rating (Degrees F): -50 to 100 deg C
$217.00/100EA
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimises operational safety
- Klippon connect provides a proven response to a range of different requirements
- UL94 flammability rating - V-2
- Version - screw connection, for screwable cross connection, one end without connector
- End cover plate required
- One potential and one level
- Two clamping points per level
- One potential per tier
- TS 35 mounting rail
- 0.5 to 2.5 sq-mm twin wire end ferrules
- On side connection direction
- Lead free
- 41 A current at maximum wires
- 1 M3.0 volume resistance according to IEC 60947-7-x
- 8 kV rated impulse withstand voltage
- 3 pollution severity
- 1-tier
- M3 screw connection
Specifications
Brand: Weidmuller
Amperage Rating: 32 A
Dimensions: 1.772 in H x 0.256 in W x 1.732 in D
Number of Poles: 2
Series: SAK
Temperature Rating (Degrees F): -50 to 100 deg C
Terminal Size: 0.6 x 3.5 mm
Terminal Type: Blade
Torque Rating: 0.5 to 1 N-m
Voltage Rating: 800 VAC
Wire Size: 26 to 12 AWG
Color: Beige/Yellow
Connection type: Screw
Material: Polyamide 6.6
Mounting type: Snap-On
UNSPSC: 39121410
UPC: 04008190019990
Weidmuller 0443660000 Klippon Feed-Through Terminal Block
Additional Description: WEID-0443660000 SAK 4/35 FEED-THROUGH TERMINAL BLOCK, SCREW CONNECTION, 4 MM, 800 V, 32 A, NUMBER OF CONNECTIONS: 2 SINGLE LEVEL FEED THROUGH
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
