0443760000
Weidmuller 0443760000 Electrical Terminal
Part Number # 0443760000
SKU # 42421
Weidmuller 0443760000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0443760000 |
| SKU #: | 42421 |
| Dimensions: | 1.772 in H x 0.394 in W x 2.028 in D |
| Torque Rating: | 2 to 2.4 N-m |
| UNSPSC: | 39121410 |
| UPC: | 04008190136949 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 0443760000 Electrical Terminal
Brand: Weidmuller
Part Number: 0443760000

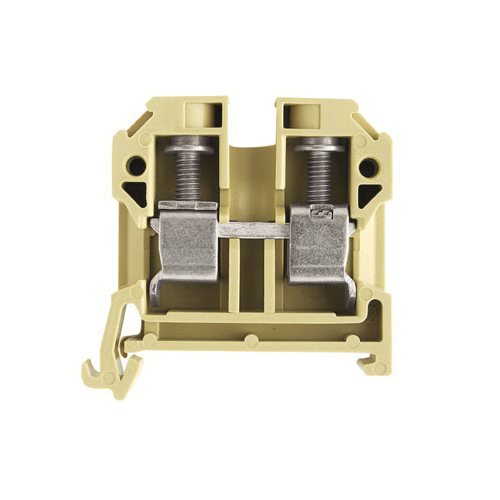

Klippon® Feed-Through Terminal Block, 1-Tier, Series: SAK, 800 VAC, 57 A, 14 to 6 AWG Wire, 12 mm Wire Strip Length, 10 sq-mm Terminal, 2 to 2.4 N-m, Snap-On Mount, Clamping Yoke Screw, -50 to 100 deg C, Polyamide 6.6, Beige/Yellow, 1.772 in H x 0.394 in W x 2.028 in D
Additional Description: WEID-0443760000 SAK 10/35 FEED-THROUGH TERMINAL BLOCK, SCREW CONNECTION, 10 MM, 800 V, 57 A, NUMBER OF CONNECTIONS: 2
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
0443760000 Item Features
- Countless approvals, specifications and the worlds most extensive range of terminal mean that SAK terminal can be used for a wide range of different applications
- Ambient temperatures are not an issue for the SAK series thanks to different materials such as polyamide, thermoplastics and heat-resistant ceramics
- The legendary high-strength steel screw clamp absorbs every geometric change to the connected conductor
- TS 32/TS 35 "2 in 1" combination foot
- UL 94 flammability rating V-2
- 1 number of potentials, 1 number of levels, 2 number of clamping points per level
- Right open sides
- 1 x 5.5 mm blade
- 0.56 mOhm volume-resistance
- For screwable cross-connection, one end without connector
- 8 kV rated impulse withstand voltage
- SAK 10/35 type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
0443760000 Standards
CSA Certified|UL File No. E60693 Listed|IEC 60947-7-1|RoHS CompliantSKU #42421Part Number #0443760000UNSPSC39121410UPC04008190136949
Image provided may only be a representation of final product and may include optional equipment
