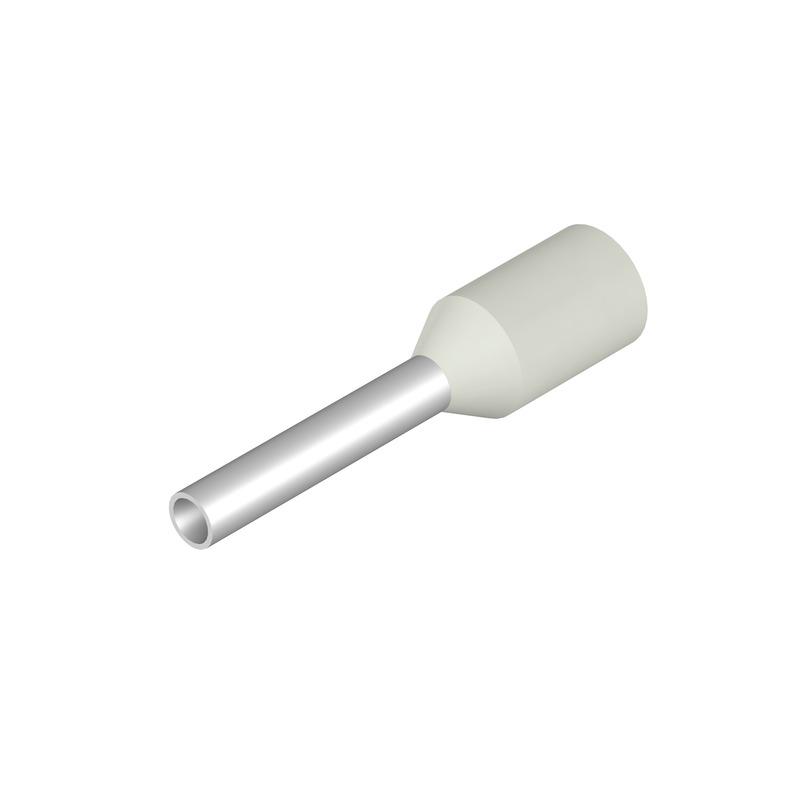

Weidmuller 0462900000 Wire End Ferrule
Part Number # 0462900000
SKU # 42426
Weidmuller 0462900000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0462900000 |
| SKU #: | 42426 |
| Conductor Size: | 18, 18 AWG |
| Overall Length: | 14, 14 mm |
| Temperature Rating (Degrees F): | 221, 221 deg F |
| Type: | Type H0.75/14 |
| Color: | White |
| Connection type: | Crimped |
| Contact material: | Electro-Galvanized Cathode Copper |
| Country of origin: | DE |
| Insulation material: | Polypropylene |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163102 |
| UPC: | 04008190033248 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 0462900000 Wire End Ferrule
Brand: Weidmuller
Part Number: 0462900000
Weidmuller Wire End Ferrule, Type H0.75/14, 18 AWG Conductor, Polypropylene Insulation, Crimped, Electro-Galvanized Cathode Copper Contact, 221 deg F, 14 mm Overall Length, White
Additional Description: WEID-0462900000 H0,75/14 W WIRE END FERRULE, STANDARD, 0.75 MM, STRIPPING LENGTH: 10 MM, WHITE LENGTH PK=500
Catalog Description: Electrogalvanised copper sleeve for the protection of stripped flexible conductors. Crimping the wire-end ferrule protects the wires and enables permanently stable electrical connections.
0462900000 Includes
00462900000 Item Features
- Polypropylene conical entry funnel
- Heat resistant upto 105 deg C
- Entry funnel can also be manufactured from a non-flammable material on request
- 0.15 mm metal sleeve thickness
- 0.25 mm plastic collar thickness
- 0.75 sq-mm conductor cross section
- 1.2 mm contact surface diameter
- 2.8 mm collar diameter
- 10 mm wire strip length
0462900000 Standards
UL E354986|CSA Certified|RU|RoHS CompliantSKU #42426Part Number #0462900000UNSPSC31163102UPC04008190033248
