0463000000

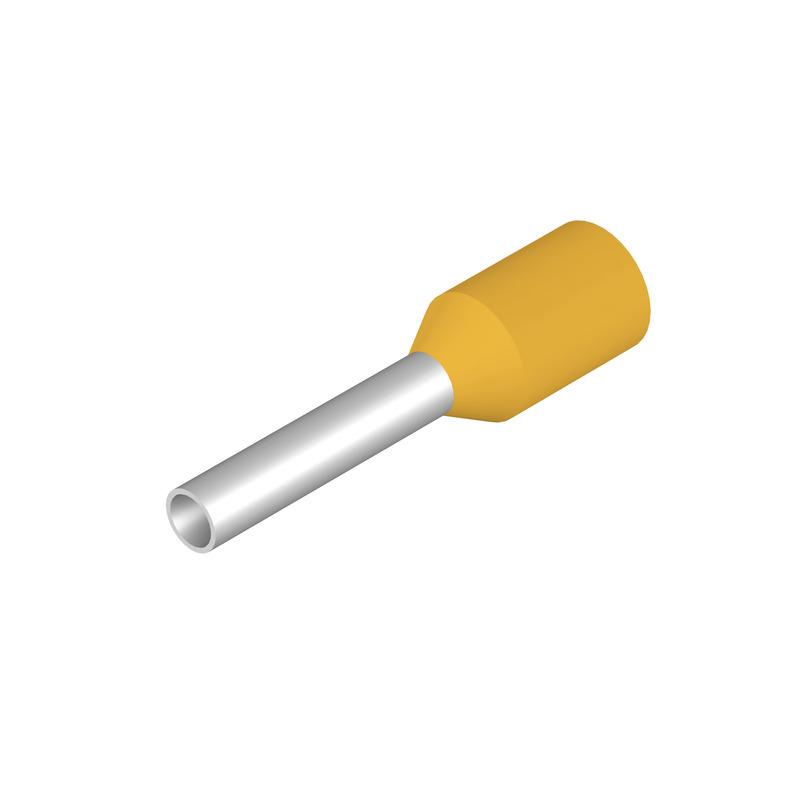

Weidmuller 0463000000 Wire End Ferrule
Part Number # 0463000000
SKU # 42427
Weidmuller 0463000000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0463000000 |
| SKU #: | 42427 |
| Conductor Size: | 17 AWG |
| Overall Length: | 14 mm |
| Temperature Rating (Degrees F): | 105 deg C |
| Type: | Type H1.0/14 |
| Color: | Yellow |
| Connection type: | Crimped |
| Contact material: | Electro-Galvanized Cathode Copper |
| Country of origin: | DE |
| Insulation material: | Polypropylene |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163102 |
| UPC: | 04008190024697 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 0463000000 Wire End Ferrule
Brand: Weidmuller
Part Number: 0463000000
Weidmuller Wire End Ferrule, Type H1.0/14, 17 AWG Conductor, Polypropylene Insulation, Crimped, Electro-Galvanized Cathode Copper Contact, 105 deg C, 14 mm Overall Length, Yellow
Additional Description: WEID-0463000000 H1,0/14 GE WIRE END FERRULE, STANDARD, 1 MM, STRIPPING LENGTH: 10 MM, YELLOW (LOOSE) 1 = PK OF 500 FERRULES
Catalog Description: Electrogalvanised copper sleeve for the protection of stripped flexible conductors. Crimping the wire-end ferrule protects the wires and enables permanently stable electrical connections.
0463000000 Includes
00463000000 Item Features
- Polypropylene conical entry funnel
- Heat-resistant up to 105 deg C
- The entry funnel can also be manufactured from a non-flammable material on request
- Dimensional tolerances to DIN 46228 Part 4
- 0.15 mm metal sleeve thickness
- 0.25 mm plastic collar thickness
- 1 sq-mm conductor cross-section
- 1.4 mm contact surface diameter
- 3 mm collar diameter
- 10 mm stripping length
0463000000 Standards
CSA-US Certified|RU Compliant|UL E354986|RoHS CompliantSKU #42427Part Number #0463000000UNSPSC31163102UPC04008190024697
