Part Number # 0463100000
SKU # 42428
Image provided may only be a representation of
final product and may include optional equipment
0463100000

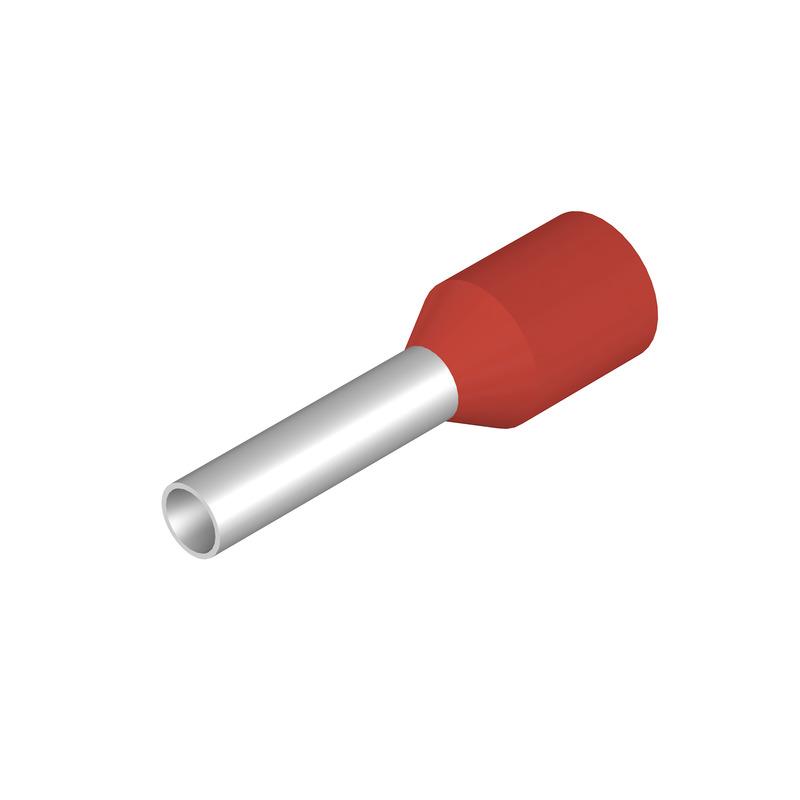

Weidmuller 0463100000 Wire End Ferrule
Part Number # 0463100000
SKU # 42428
Weidmuller 0463100000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0463100000 |
| SKU #: | 42428 |
| Conductor Size: | 16 AWG |
| Overall Length: | 14 mm |
| Temperature Rating (Degrees F): | 221 deg F |
| Type: | Type H1.5/14 |
| Connection type: | Crimped |
| Contact material: | Electro-Galvanized Cathode Copper |
| Country of origin: | DE |
| Insulation material: | Polypropylene |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163102 |
| UPC: | 04008190065089 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 0463100000 Wire End Ferrule
Brand: Weidmuller
Part Number: 0463100000
Weidmuller Wire End Ferrule, Type H1.5/14, 16 AWG Conductor, Polypropylene Insulation, Crimped, Electro-Galvanized Cathode Copper Contact, 221 deg F, 14 mm Overall Length, Red
Additional Description: WEID-0463100000 H1,5/14 R WIRE END FERRULE, STANDARD, 16 AWG, 1.5 MM, STRIPPING LENGTH: 10 MM, RED 1PK = 500 FERRULES
Catalog Description: Electrogalvanised copper sleeve for the protection of stripped flexible conductors. Crimping the wire-end ferrule protects the wires and enables permanently stable electrical connections.
0463100000 Includes
00463100000 Item Features
- Polypropylene conical entry funnel
- Heat resistant upto 105 deg C
- Entry funnel can also be manufactured from a non-flammable material on request
- 0.15 mm metal sleeve thickness
- 0.25 mm plastic collar thickness
- 1.5 sq-mm conductor cross section
- 1.7 mm contact surface diameter
- 3.5 mm collar diameter
- 10 mm wire strip length
0463100000 Standards
UL E354986|CSA Certified|RU|RoHS CompliantSKU #42428Part Number #0463100000UNSPSC31163102UPC04008190065089
