0474560000

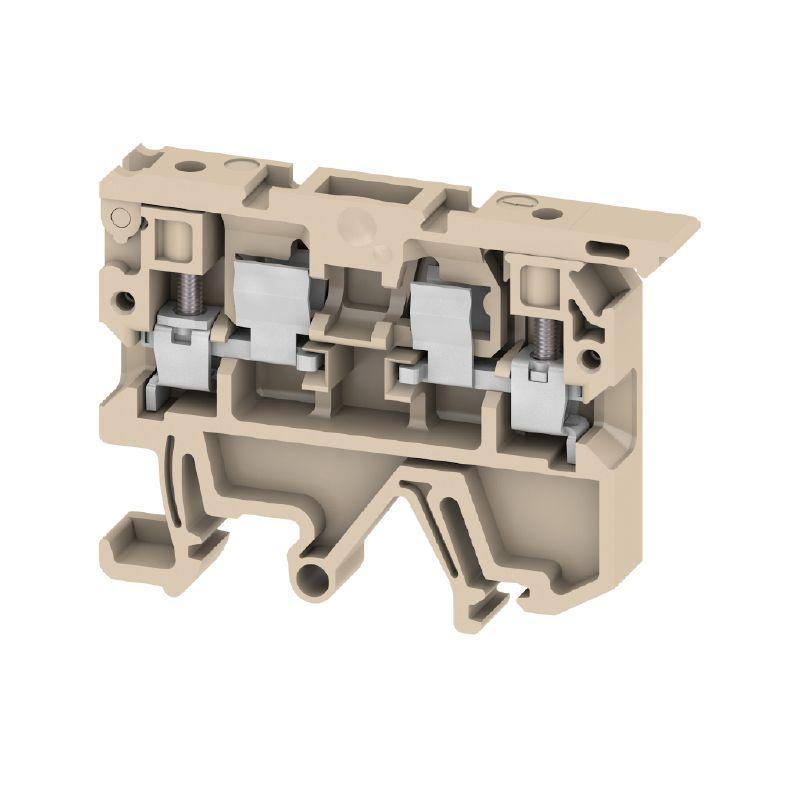

Weidmuller 0474560000 Fuse Terminal Block
Part Number # 0474560000
SKU # 42468
Weidmuller 0474560000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0474560000 |
| SKU #: | 42468 |
| Dimensions: | 2.28 in H x 0.31 in W x 1.69 in D, 2.283 in H x 0.319 in W x 1.693 in D |
| Type: | Fuse |
| UNSPSC: | 39121410 |
| UPC: | 04008190020880 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 0474560000 Fuse Terminal Block
Brand: Weidmuller
Part Number: 0474560000
Weidmuller Fuse Terminal Block, 1-Tier, Series: SAK, 500 VAC/VDC, 6.3 A, 26 to 12 AWG Wire, 9 mm Wire Strip Length, Blade Terminal, 0.6 x 3.5 mm Terminal, 0.6 to 0.8 N-m Torque, Snap-On Mounting, Screw Connection, -50 to 100 deg C, Polyamide, Beige/Yellow, 2.283 in H x 0.319 in W x 1.693 in D Dimensions
Additional Description: WEID-0474560000 ASK 1/EN FUSE TERMINAL, SCREW CONNECTION, FUSE CARTRIDGE, ONE END WITHOUT CONNECTOR, SCREW CONNECTION, 4 MM, 500 V, 6.3 A, G-SI. 5 X 20, BEIGE / YELLOW
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity. With removable carrier for a cartridge fuse.
0474560000 Item Features
- For TS 35 and TS 32 mounting rails
- Comes one end without connector
- 6 kV rated impulse withstand voltage
- End cover plate required
0474560000 Standards
RoHS Compliant|CSA|IEC 60947-1|DIN 46228/1|DIN 46228/4|IEC 60947-7-xSKU #42468Part Number #0474560000UNSPSC39121410UPC04008190020880
Image provided may only be a representation of final product and may include optional equipment
