0501620000

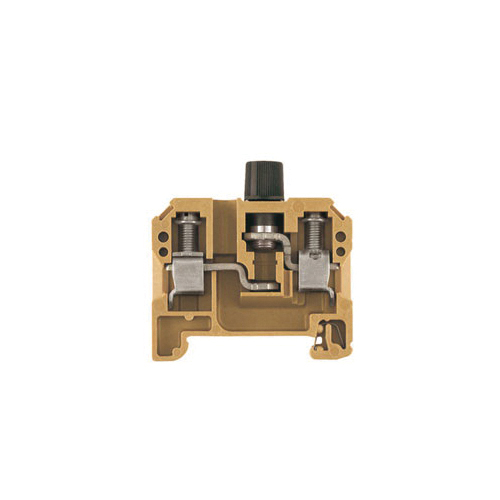

Weidmuller 0501620000 Electrical Terminal
Part Number # 0501620000
SKU # 2254068
$434.00 / 20Each
Typical price:$457.96 / Each
Weidmuller 0501620000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0501620000 |
| SKU #: | 2254068 |
| Dimensions: | 2.126 in H x 0.512 in W x 2.087 in D |
| Terminal Size: | 10 sq-mm |
| UNSPSC: | 39121410 |
| UPC: | 04008190111229 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$434.00 / 20Each
Typical price:$457.96 / Each
Quantity:
- Klippon Fuse Terminal Block, Series: SAK, 600 V AC, 6.3 A, 26 to 8 AWG Wire, 12 mm Wire Strip Length, 10 sq-mm Terminal, 1.2 to 2.4 N-m Torque, Snap-Fit Mounting, Screw Connection, -60 to 130 deg C, KrG, Yellow, 2.126 in H x 0.512 in W x 2.087 in D Dimensions
0501620000 Item Features
- Fuse cartridge, one end without connector
- TS 35 mounting rail
- Right open sides
- 10 sq-mm, screw connection
- 1 x 5.5 mm blade
- On side connection direction
- 0.13 to 16 sq-mm clamping range, rated connection
- 0.5 to 10 sq-mm minimum/maximum rated wire connection cross-section, finely stranded with wire to end ferrules and plastic collars DIN 46228/1
- B6 gauge to IEC 60947-1
- 2 number of connections
- 4 torque level with DMS electric screwdriver
- 1 number of similar terminal
- 500 VAC/VDC operating voltage for display
- G-Si 5 x 20 cartridge fuse
- For screw fixing fuse holder
- UL 94 flammability rating V-0
- 0.56 mOhm volume-resistance according to IEC 60947-7-x
- 6 kV rated impulse withstand voltage
- 3 pollution severity
- M4 clamping screw, SAKS 1/35/G20 type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
0501620000 Standards
UR|UL File No. E60693 Listed|CE Certified|VDE|CSA Certified|Certified|EAC|RoHS CompliantSKU #2254068Part Number #0501620000UNSPSC39121410UPC04008190111229
Image provided may only be a representation of final product and may include optional equipment
