Part Number # 0565700000
SKU # 340113
Image Disclaimers Message
0565700000

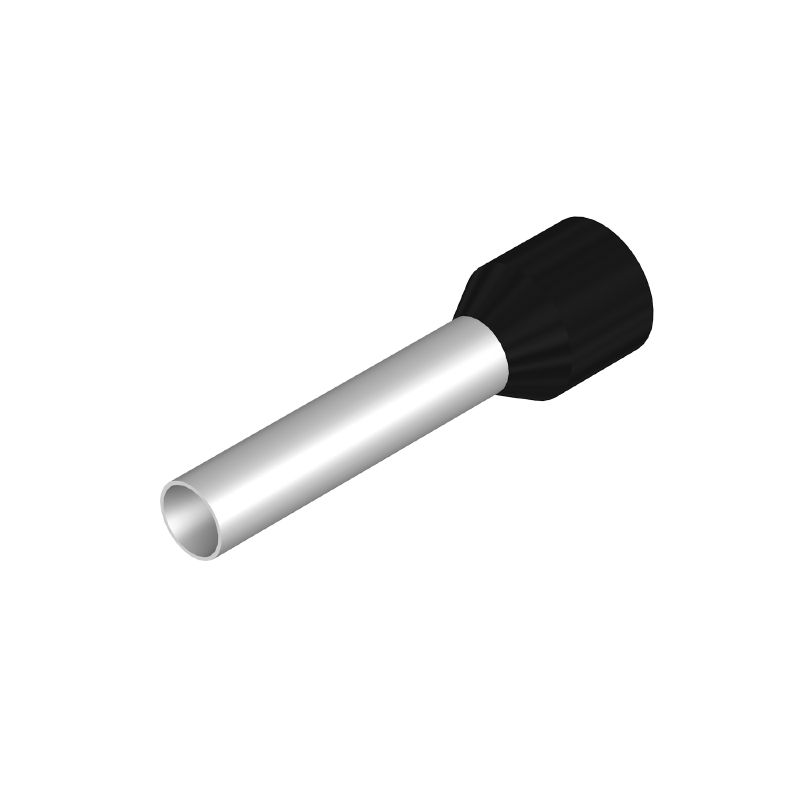

Weidmuller 0565700000 Wire End Ferrule
Part Number # 0565700000
SKU # 340113
$10.00 / 100Each
Typical price:$11.00 / Each
Weidmuller 0565700000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0565700000 |
| SKU #: | 340113 |
| Conductor Size: | 10 AWG |
| Overall Length: | 26 mm |
| Temperature Rating (Degrees F): | 105 deg C |
| Type: | Type H6.0/26 |
| Color: | Black |
| Connection type: | Crimped |
| Contact material: | Electro-Galvanized Cathode Copper |
| Country of origin: | DE |
| Insulation material: | Polypropylene |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163102 |
| UPC: | 04008190026837 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$10.00 / 100Each
Typical price:$11.00 / Each
Quantity:
Weidmuller 0565700000 Wire End Ferrule
Brand: Weidmuller
Part Number: 0565700000
Weidmuller Wire End Ferrule, Type H6.0/26, 10 AWG Conductor, Polypropylene Insulation, Crimped, Electro-Galvanized Cathode Copper Contact, 105 deg C, 26 mm Overall Length, Black
Additional Description: WEID-0565700000 H 6.0/26,10AWG,INS,BK PK=100
Catalog Description: Electrogalvanised copper sleeve for the protection of stripped flexible conductors. Crimping the wire-end ferrule protects the wires and enables permanently stable electrical connections.
0565700000 Includes
00565700000 Item Features
- Polypropylene conical entry funnel
- Heat-resistant up to 105 deg C
- The entry funnel can also be manufactured from a non-flammable material on request
- Dimensional tolerances to DIN 46228 Part 4
- 0.2 mm metal sleeve thickness
- 0.3 mm plastic collar thickness
- 6 sq-mm conductor cross-section
- 3.5 mm contact surface diameter
- 6.3 mm collar diameter
- 20 mm stripping length
0565700000 Standards
CSA-US Certified|RU Compliant|UL E354986|RoHS CompliantSKU #340113Part Number #0565700000UNSPSC31163102UPC04008190026837
