Part Number # 0590260000
SKU # 2281154
Image Disclaimers Message
0590260000

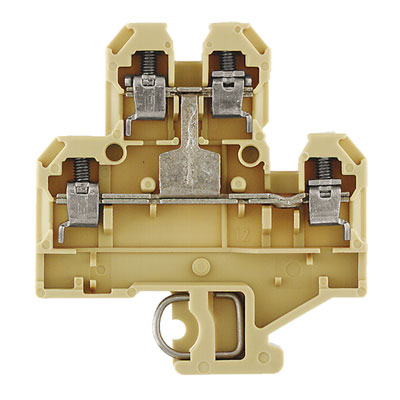

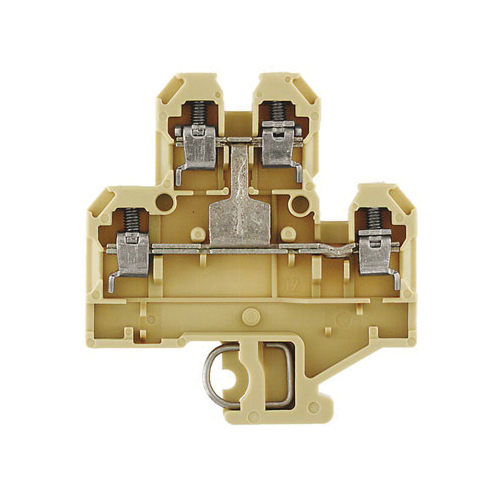

Weidmuller 0590260000 Electrical Terminal
Part Number # 0590260000
SKU # 2281154
$305.50 / 25Each
Typical price:$315.15 / Each
Weidmuller 0590260000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0590260000 |
| SKU #: | 2281154 |
| Amperage Rating: | 32 A |
| Dimensions: | 54 mm H x 6 mm W x 59.5 mm D |
| Series: | SAK |
| Temperature Rating (Degrees F): | -50 to 100 deg C |
| Terminal Size: | M3 |
| Torque Rating: | 0.5 to 0.1 N-m |
| Type: | Double Tier Feed-Through Modular |
| Wire Size: | 4 sq-mm |
| Color: | Beige/Yellow |
| Connection type: | Screw |
| Country of origin: | RO |
| Material: | Polyamide 66 |
| Mounting type: | Clamp |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190022419 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$305.50 / 25Each
Typical price:$315.15 / Each
Quantity:
Weidmuller 0590260000 Electrical Terminal
Brand: Weidmuller
Part Number: 0590260000
Additional Description: WEID-0590260000 DK 4QV/32 MULTI-TIER MODULAR TERMINAL, SCREW CONNECTION, 4 MM, 500 V, 32 A, NUMBER OF LEVELS: 2, BEIGE / YELLOW
Catalog Description: Terminal block with several levels for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity. Space-saving design.
0590260000 Item Features
- Klippon connect with clamping yoke technology
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
0590260000 Standards
RoHS Compliant|UL File No. E60693|UL 94 V-2 Flammability Rating|UL/cULus File No. E60693|CSA File No. 12400-124|ATEX File No. TUEV18ATEX8210U|IECEX File No. IECEXTUR18.0020U|EN 60079-7: Ex eb II C Gb|Ex 2014/34/EU Label: II 2 G D|CE Certified|EAC Certified|IEC Ex Certified|KEMA-KEUR CertifiedSKU #2281154Part Number #0590260000UNSPSC39121410UPC04008190022419
