0608360000

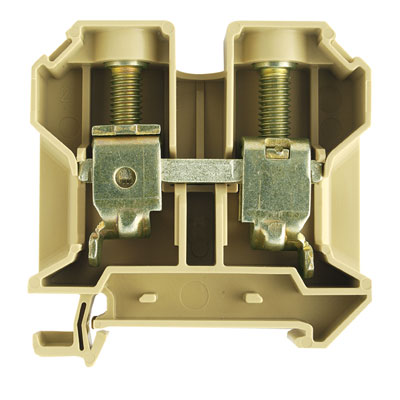

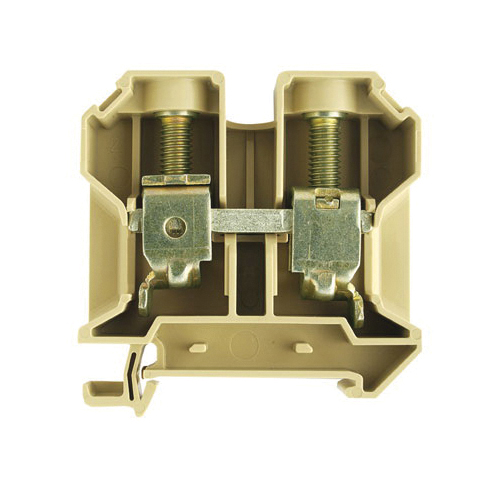

Weidmuller 0608360000 Electrical Terminal
Part Number # 0608360000
SKU # 2339526
$0.00 / 20Each
Typical price:$525.86 / Each
Weidmuller 0608360000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0608360000 |
| SKU #: | 2339526 |
| Amperage Rating: | 125 A |
| Dimensions: | 58 mm H x 16 mm W x 60 mm D |
| Series: | SAK |
| Temperature Rating (Degrees F): | -50 to 100 deg C |
| Terminal Size: | M6 |
| Torque Rating: | 4 to 6 N-m |
| Type: | Feed-Through |
| Wire Size: | 35 sq-mm |
| Connection type: | Screw |
| Country of origin: | RO |
| Material: | Polyamide 66 |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190090197 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$0.00 / 20Each
Typical price:$525.86 / Each
Quantity:
- Klippon Terminal Block, Feed-Through, Series: SAK, 800 V, 125 A, 35 sq-mm Wire, 18 mm Wire Strip Length, M6 Terminal, 4 to 6 N-m Torque, DIN Rail Mounting, Screw Connection, -50 to 100 deg C, Polyamide 66, Beige/Yellow, 58 mm H x 16 mm W x 60 mm D Dimensions
0608360000 Item Features
- Klippon connect with clamping yoke technology
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
0608360000 Standards
RoHS Compliant|UL File No. E60693|UL 94 V-2 Flammability Rating|UL/cULus File No. E60693|CSA File No. 12400-201|CE Certified|DNV-GL Approved|EAC Certified|PRMS CertifiedSKU #2339526Part Number #0608360000UNSPSC39121410UPC04008190090197
