0620120000
Weidmuller 0620120000 Electrical Terminal
Part Number # 0620120000
SKU # 335392
$387.40 / 20Each
Typical price:$430.30 / Each
Weidmuller 0620120000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0620120000 |
| SKU #: | 335392 |
| Dimensions: | 2.972 in H x 0.906 in W x 0.866 in D |
| Torque Rating: | 1.2 to 2 N-m |
| Type: | Multi-Pin |
| Wire Size: | 10 to 22 AWG |
| UNSPSC: | 39121410 |
| UPC: | 04008190129330 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$387.40 / 20Each
Typical price:$430.30 / Each
Quantity:

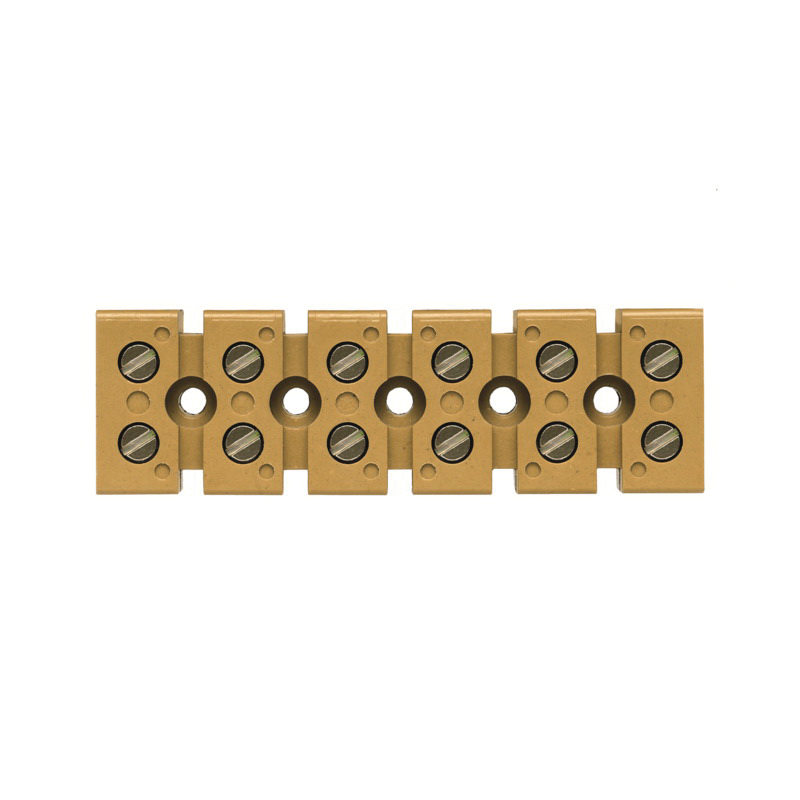

- Klippon Terminal Strip, Multi-Pin, Series: MK Series, 690 V AC, 41 A, 10 to 22 AWG Wire, 1.2 to 2 N-m, Screw, -60 to 130 deg C, KrG, Medium Yellow, 2.972 in H x 0.906 in W x 0.866 in D
0620120000 Item Features
- Klippon connect with clamping-yoke technology
- The high reliability and variety of designs of the terminal blocks with clamping-yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
- 25 A current size B and C (CSA), 300 VAC voltage size B and C (CSA), 10 to 22 AWG wire cross-section (CSA)
- 4 x 0.8 mm blade, 0.33 to 6 sq-mm clamping range, rated connection, M4 clamping screw
- A3 gauge to IEC 60947-1, 12 connections, 9 mm L stripping
- 10 to 22 AWG wire connection cross-section, 0.5 to 4 sq-mm wire connection cross-section, finely stranded with wire end ferrules DIN 46228/1, rated connection, 4 torque level with DMS electric screwdriver
- 0.5 to 6 sq-mm wire connection cross-section, solid core rated connection, 6 to 1.5 sq-mm wire connection cross-section, stranded, rated connection, 0.5 to 6 sq-mm wire connection cross-section, finely stranded
- 6 sq-mm rated cross-section, 8 kV rated impulse withstand voltage, 3 pollution severity
- 10 to 22 AWG conductor size factory wiring (UR), 10 to 22 AWG conductor size field wiring, 30 A current size B and C (UR), 300 VAC voltage size B and C (UR)
- UL 94 flammability rating 5 VA, mounting plate mounting rail
- 6-poles
- Direct mounting installation advice
- MK 6/6 type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
0620120000 Standards
UL File No. E60693|File No. UR E60693 Listed|CSA 12400-149|IEC 60947-7-1|CE Certified|EAC Approved|Kema eur|CURSEX|RoHS CompliantSKU #335392Part Number #0620120000UNSPSC39121410UPC04008190129330
Image provided may only be a representation of final product and may include optional equipment
