0620320000

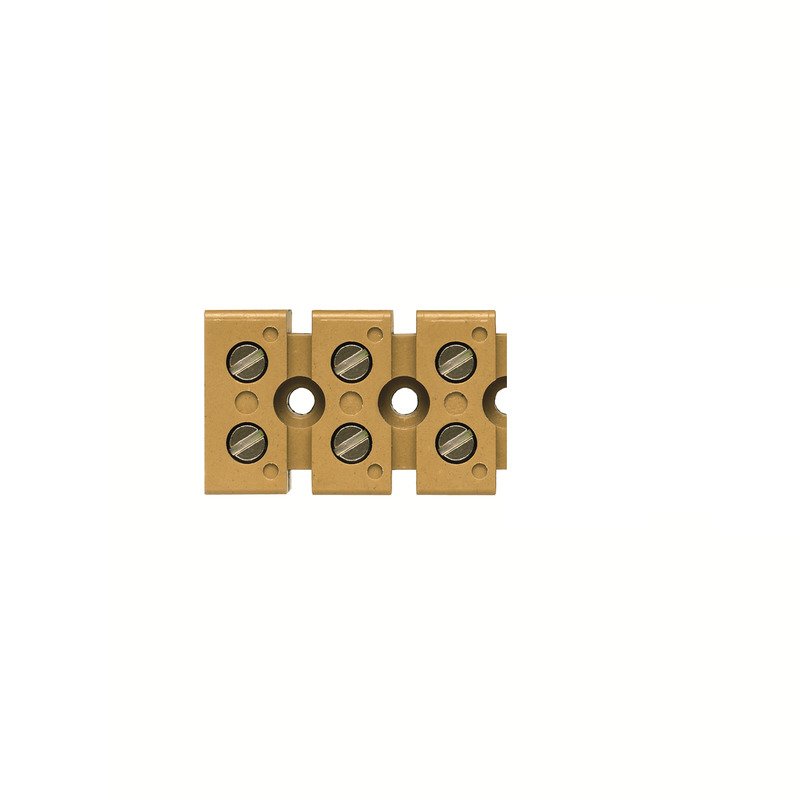

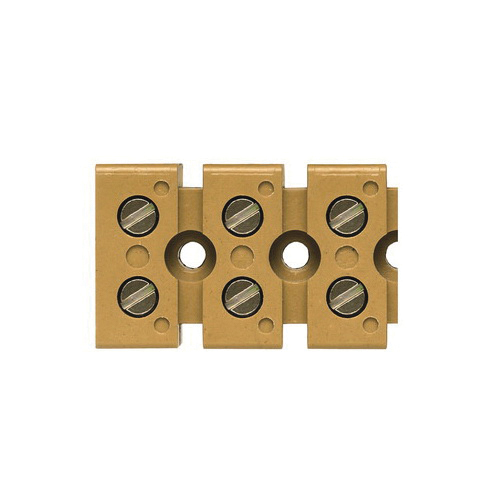

Weidmuller 0620320000 Electrical Terminal
Part Number # 0620320000
SKU # 2120267
$576.50 / 50Each
Typical price:$640.05 / Each
Weidmuller 0620320000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0620320000 |
| SKU #: | 2120267 |
| Amperage Rating: | 41 A |
| Barrier Style: | Enclosed |
| Dimensions: | 36.5 mm H x 23 mm W x 22 mm D |
| Number of Terminals: | 2 |
| Screw Size: | M4 |
| Series: | SAK |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Torque Rating: | 1.2 to 2 N-m |
| Type: | 3-Pole |
| Wire Size: | 22 to 10 AWG |
| Connection type: | Screw |
| Country of origin: | HU |
| Material: | Melamine |
| Mounting type: | Surface |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190077440 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$576.50 / 50Each
Typical price:$640.05 / Each
Quantity:
- Klippon Terminal Strip, 3-Pole, Series: SAK, 690 V, 41 A, 2 Terminals, 22 to 10 AWG Wire, Enclosed Barrier Style, M4 Screw, 1.2 to 2 N-m Torque, Surface Mounting, Screw Connection, -60 to 130 deg C, Melamine, Medium Yellow, 36.5 mm H x 23 mm W x 22 mm D Dimensions
0620320000 Item Features
- High reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
0620320000 Standards
RoHS Compliant|EAC Certified|CSA Certified|cULus Recognized|CE Certified|cULus Ex Recognized|KEMA-KEUR Certified|UL File No. E60693|IEC 60947-7-1|UL 94 5VA Flammability RatingSKU #2120267Part Number #0620320000UNSPSC39121410UPC04008190077440
Image provided may only be a representation of final product and may include optional equipment
