0625220000

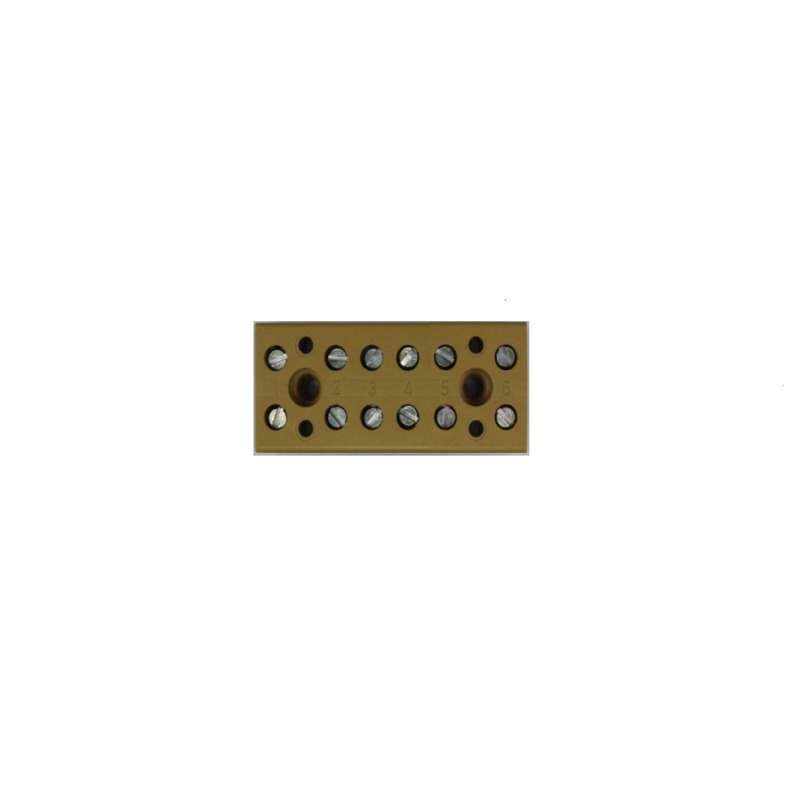

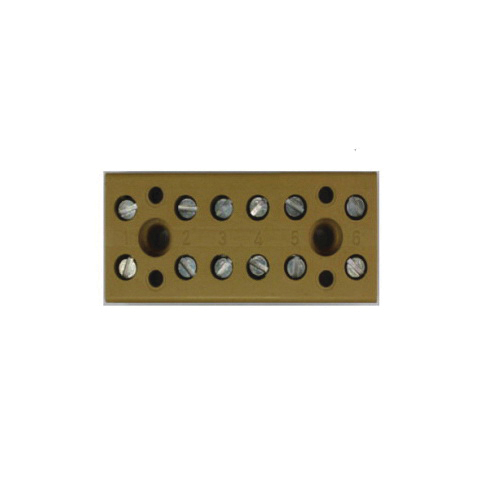

Weidmuller 0625220000 Klippon Terminal Strip
Part Number # 0625220000
SKU # 934513
Weidmuller 0625220000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0625220000 |
| SKU #: | 934513 |
| Amperage Rating: | 32 A |
| Barrier Style: | Enclosed |
| Dimensions: | 52 mm H x 22 mm W x 20 mm D |
| Number of Terminals: | 2 |
| Screw Size: | M3 |
| Series: | SAK |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Torque Rating: | 0.5 to 0.6 N-m |
| Type: | 6-Pole |
| Wire Size: | 22 to 12 AWG |
| Color: | Medium Yellow |
| Connection type: | Screw |
| Country of origin: | HU |
| Material: | Melamine |
| Mounting type: | Surface |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190026417 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 0625220000 Klippon Terminal Strip
Brand: Weidmuller
Part Number: 0625220000
Klippon Terminal Strip, 6-Pole, Series: SAK, 400 V, 32 A, 2 Terminals, 22 to 12 AWG Wire, Enclosed Barrier Style, M3 Screw, 0.5 to 0.6 N-m Torque, Surface Mounting, Screw Connection, -60 to 130 deg C, Melamine, Medium Yellow, 52 mm H x 22 mm W x 20 mm D Dimensions
Additional Description: WEID-0625220000 BK 6 CRN SINGLE- AND MULTI-POLE TERMINAL STRIP, SCREW CONNECTION, 4 MM, 400 V, 32 A, NUMBER OF POLES: 6, 22 MM, MEDIUM YELLOW
Catalog Description: Terminal strip for screwing directly to the bottom of the housing.
0625220000 Includes
00625220000 Item Features
- High reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
0625220000 Standards
RoHS Compliant|EAC Certified|CSA Certified|cULus Recognized|CE Certified|UL File No. E60693|IEC 60947-7-1|UL 94 V-0/5VA Flammability RatingSKU #934513Part Number #0625220000UNSPSC39121410UPC04008190026417
