0637720000

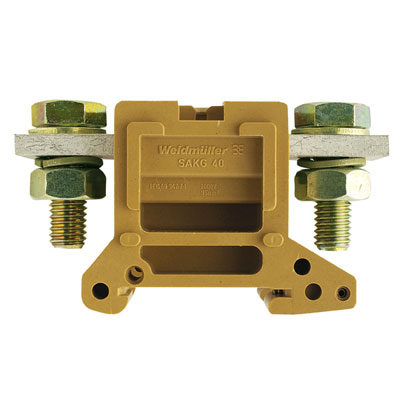

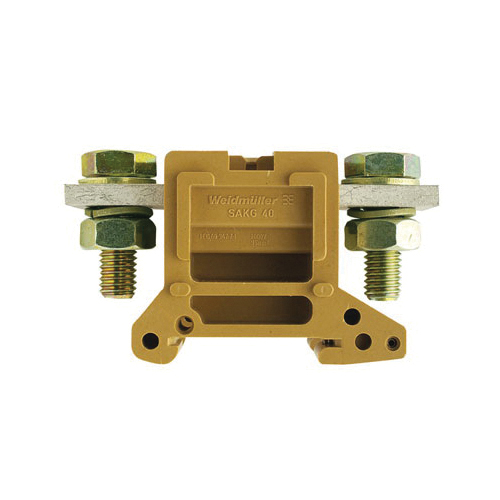

Weidmuller 0637720000 Electrical Terminal
Part Number # 0637720000
SKU # 2136320
$229.60 / 5Each
Typical price:$242.28 / Each
Weidmuller 0637720000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0637720000 |
| SKU #: | 2136320 |
| Amperage Rating: | 232 A |
| Dimensions: | 90 mm H x 46 mm W x 53 mm D |
| Series: | SAK |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Terminal Size: | M10 |
| Torque Rating: | 10 to 20 N-m |
| Type: | Feed-Through Special |
| Wire Size: | 95 sq-mm |
| Connection type: | Screw |
| Country of origin: | HU |
| Material: | KrG |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190101367 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$229.60 / 5Each
Typical price:$242.28 / Each
Quantity:
- Klippon Terminal Block, Feed-Through Special, Series: SAK, 1 kV, 232 A, 5 VA Power, 95 sq-mm Wire, M10 Terminal, 10 to 20 N-m Torque, Snap-Fit Mounting, Screw Connection, -60 to 130 deg C, KrG, Medium Yellow, 90 mm H x 46 mm W x 53 mm D Dimensions
0637720000 Item Features
- Klippon connect with clamping yoke technology
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
0637720000 Standards
RoHS Compliant|UL File No. E60693|REACH SVHC Lead 7439-92-1|UL 94 V-0 Flammability Rating|UL/cULus File No. E60693|CSA File No. 12400-119|CE Certified|EAC Certified|PRMS CertifiedSKU #2136320Part Number #0637720000UNSPSC39121410UPC04008190101367
Image provided may only be a representation of final product and may include optional equipment
