0642760000
Weidmuller 0642760000 Electrical Terminal
Part Number # 0642760000
SKU # 2176136
$0.00 / 25Each
Typical price:$311.78 / Each
Weidmuller 0642760000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0642760000 |
| SKU #: | 2176136 |
| Amperage Rating: | 10 A |
| Dimensions: | 50 mm H x 6 mm W x 54 mm D |
| Series: | SAK |
| Temperature Rating (Degrees F): | -50 to 100 deg C |
| Terminal Size: | M3 |
| Torque Rating: | 0.5 to 0.8 N-m |
| Type: | Double Tier |
| Wire Size: | 4 sq-mm |
| Connection type: | Screw |
| Country of origin: | RO |
| Material: | Polyamide 66 |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190043209 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$0.00 / 25Each
Typical price:$311.78 / Each
Quantity:

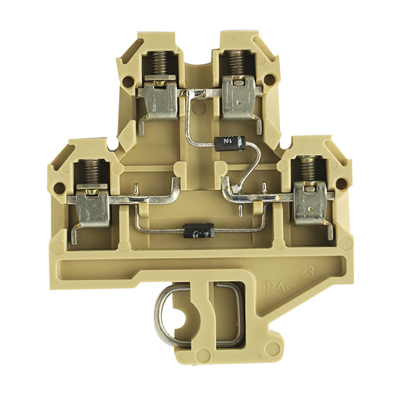

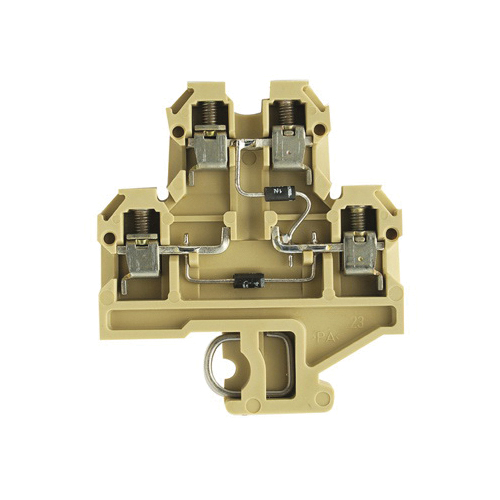

- Klippon Terminal Block, Double Tier, Series: SAK, 380 V, 10 A, 4 sq-mm Wire, 9 mm Wire Strip Length, M3 Terminal, 0.5 to 0.8 N-m Torque, Snap-Fit Mounting, Screw Connection, -50 to 100 deg C, Polyamide 66, Beige/Yellow, 50 mm H x 6 mm W x 54 mm D Dimensions
0642760000 Application
For lamp test circuits0642760000 Item Features
- Klippon connect with clamping yoke technology
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
0642760000 Standards
RoHS Compliant|UL 94 V-2 Flammability Rating|CE Certified|EAC CertifiedSKU #2176136Part Number #0642760000UNSPSC39121410UPC04008190043209
Image provided may only be a representation of final product and may include optional equipment
