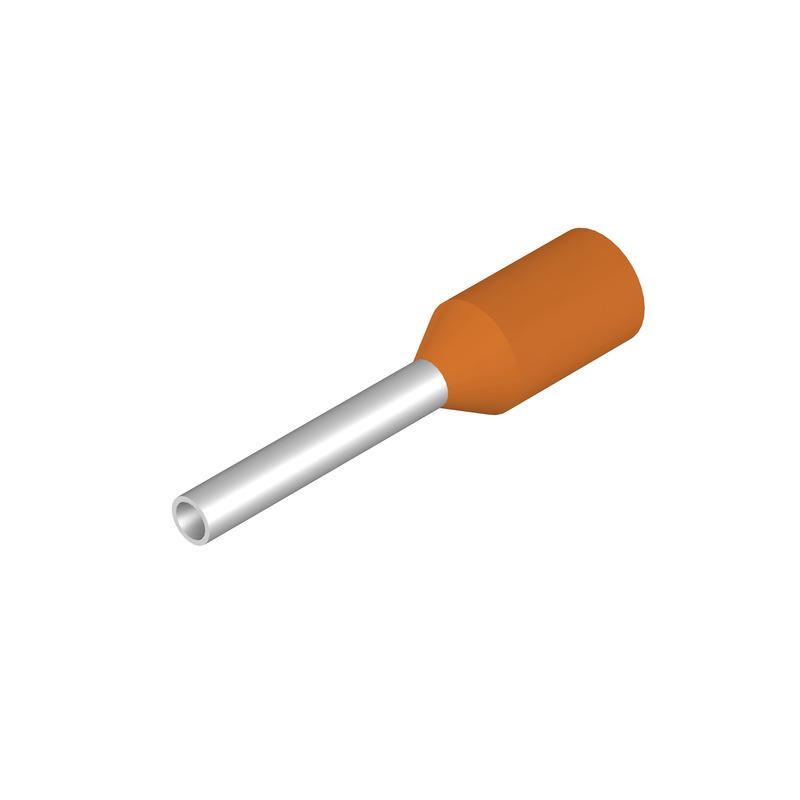

Weidmuller 0690700000 Wire End Ferrule
Part Number # 0690700000
SKU # 42561
Weidmuller 0690700000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 0690700000 |
| SKU #: | 42561 |
| Conductor Size: | 20 AWG |
| Overall Length: | 14 mm |
| Temperature Rating (Degrees F): | 221 deg F |
| Type: | Type H0.5/14 |
| Color: | Orange |
| Connection type: | Crimped |
| Contact material: | Electro-Galvanized Cathode Copper |
| Country of origin: | DE |
| Insulation material: | Polypropylene |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163102 |
| UPC: | 04008190015770 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 0690700000 Wire End Ferrule
Brand: Weidmuller
Part Number: 0690700000
Weidmuller Wire End Ferrule, Type H0.5/14, 20 AWG Conductor, Polypropylene Insulation, Crimped, Electro-Galvanized Cathode Copper Contact, 221 deg F, 14 mm Overall Length, Orange
Additional Description: WEID-0690700000 H0,5/14 OR WIRE END FERRULE, STANDARD, 0.5 MM, STRIPPING LENGTH: 10 MM, ORANGE 1 = PK OF 500 FERRULES
Catalog Description: Electrogalvanised copper sleeve for the protection of stripped flexible conductors. Crimping the wire-end ferrule protects the wires and enables permanently stable electrical connections.
0690700000 Includes
00690700000 Item Features
- Entry funnel can also be manufactured from a non-flammable material on request
- 0.15 mm metal sleeve thickness
- 0.25 mm plastic collar thickness
- 0.5 sq-mm conductor cross section
- 1 mm contact surface diameter
- 2.6 mm collar diameter
- 10 mm wire strip length
0690700000 Standards
UL E354986|CSA Certified|RU|RoHS CompliantSKU #42561Part Number #0690700000UNSPSC31163102UPC04008190015770
