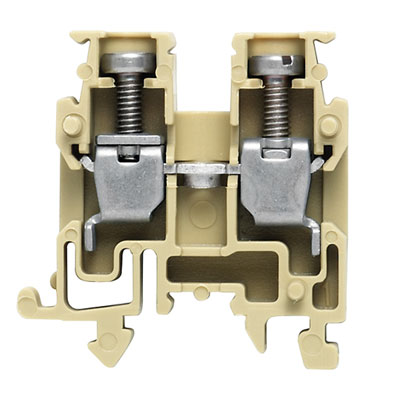

Weidmuller 0697160000 Klippon Terminal Block
Weidmuller 0697160000 Klippon Terminal Block
Part #:0697160000
SKU #: 1735048
$206.00/ea
Key Features
Part #:0697160000
SKU #: 1735048
Brand: Weidmuller
Amperage Rating: 24 A
Dimensions: 25.5 mm H x 5.1 mm W x 26.3 mm D
Series: AKZ
Temperature Rating (Degrees F): -50 to 100 deg C
Terminal Size: M2.5
$206.00/ea
Only 10 left in stock order soon
Ships in 1 Business Day
- Klippon connect with clamping yoke technology
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
Specifications
Brand: Weidmuller
Amperage Rating: 24 A
Dimensions: 25.5 mm H x 5.1 mm W x 26.3 mm D
Series: AKZ
Temperature Rating (Degrees F): -50 to 100 deg C
Terminal Size: M2.5
Torque Rating: 0.4 to 0.6 N-m
Type: Feed-Through Mini-Modular
Voltage Rating: 250 V
Wire Size: 2.5 sq-mm
Color: Beige/Yellow
Connection type: Screw
Material: Polyamide 66
Mounting type: Snap-On
UNSPSC: 39121410
UPC: 04008190121716
Weidmuller 0697160000 Klippon Terminal Block
Additional Description: WEID-0697160000 AKZ 2.5 FEED-THROUGH TERMINAL BLOCK, SCREW CONNECTION, 2.5 MM, 250 V, 24 A, NUMBER OF CONNECTIONS: 2
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
