Weidmuller 1000910000 Printed Circuit Board Pcb Press Fit Header Connector
Part Number # 1000910000
SKU # 2332815
1000910000
Weidmuller 1000910000 Printed Circuit Board Pcb Press Fit Header Connector
Part Number # 1000910000
SKU # 2332815
$328.00 / 32Each
Typical price:$377.70 / Each
Weidmuller 1000910000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1000910000 |
| SKU #: | 2332815 |
| Dimensions: | 24.7 mm H x 35.56 mm W x 28.3 mm D |
| UNSPSC: | 31163101 |
| UPC: | 04032248817450 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$328.00 / 32Each
Typical price:$377.70 / Each
Quantity:

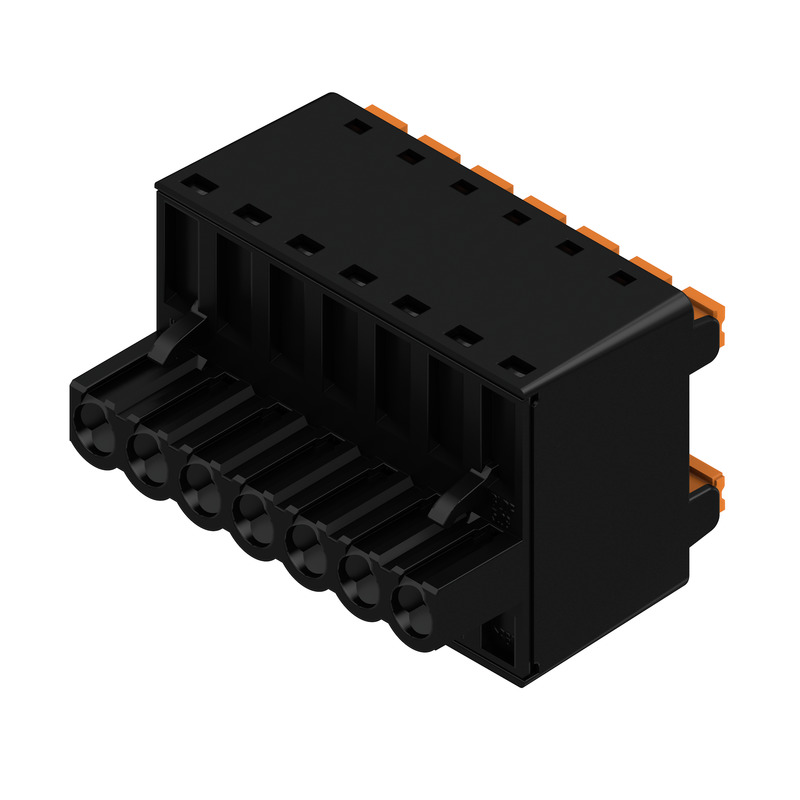

- Weidmuller OMNIMATE Signal PCB Plug-In Connector, Wire Connection, Series: BL/SL 5.08, 7 Positions, 1 Rows, 5.08 mm Pitch/Row Spacing, 26 to 12 AWG Wire, 300/400 V, Female Plug Connector, Push-In/Tension Clamp Termination, CuSn Contact, >=10^8 Ohm Insulation Resistance, PBT Housing Material, -50 to 100 deg C, Black, 24.7 mm H x 35.56 mm W x 28.3 mm D Dimensions
1000910000 Item Features
- The powerful daisy chain solution for high performance signal bus applications is also suitable for 400 V auxiliary power chains with 18.5 A current carrying capacity
- The large clamping capacity (up to 2.5 sq-mm wire cross sections) is particularly beneficial for long bus cables or high currents because of the low voltage drop
- Four flange variations, including the patented release latch, allow for user friendly unplugging designs
- 400 V IEC, 300 V UL
1000910000 Standards
RoHS Compliant|IEC 60664-1, 61984|CSA No. 200039-1121690|UL 1059|cULus No. E60693 Recognized|UL 94 V-0 Flammability Rating|EAC CertifiedSKU #2332815Part Number #1000910000UNSPSC31163101UPC04032248817450
Image provided may only be a representation of final product and may include optional equipment
