Part Number # 1003180000
SKU # 2387616
Image Disclaimers Message
1003180000

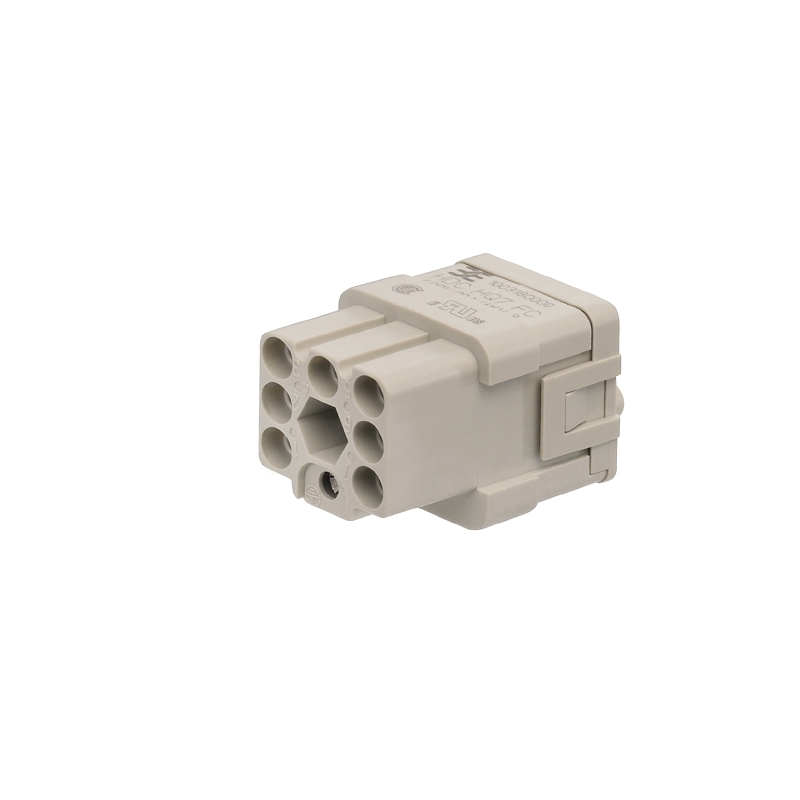

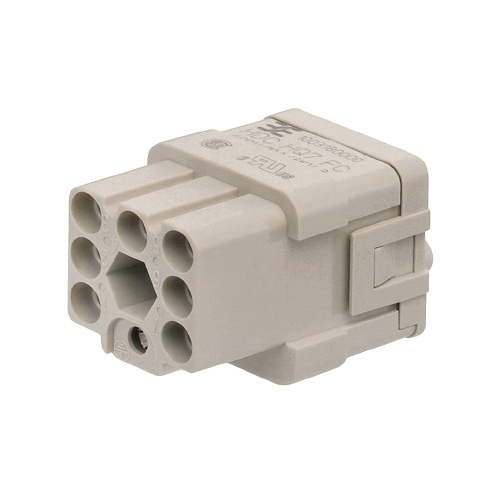

Weidmuller 1003180000 HDC 7-Pole Female Contact Insert, 26 to 14 AWG Wire, Crimp Connection
Part Number # 1003180000
SKU # 2387616
Weidmuller 1003180000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1003180000 |
| SKU #: | 2387616 |
| Dimensions: | 40.2 mm H x 21 mm W x 21 mm D |
| Series: | HDC |
| Specifications: | 400 V, 10 A, SZ 1, 40.2 mm H of Socket, 21 mm Total L Base |
| Suitable For Use With: | Heavy Duty Connector |
| Temperature Rating (Degrees F): | -40 to 125 deg C |
| Type: | 7-Pole |
| Wire Size: | 26 to 14 AWG |
| Connection type: | Crimp |
| Country of origin: | CN |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04032248698172 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1003180000 HDC 7-Pole Female Contact Insert, 26 to 14 AWG Wire, Crimp Connection
Brand: Weidmuller
Part Number: 1003180000
Weidmuller Female Contact Insert, 7-Pole, Series: HDC, 26 to 14 AWG Wire, Crimp Connection, For Use With: Heavy Duty Connector, -40 to 125 deg C, Specifications: 400 V, 10 A, SZ 1, 40.2 mm H of Socket, 21 mm Total L Base, 40.2 mm H x 21 mm W x 21 mm D Dimensions
Additional Description: WEID-1003180000 HDC HQ 7 FC CONTACT INSERT (INDUSTRY PLUG-IN CONNECTORS), FEMALE, 400 V, 10 A, NUMBER OF POLES: 7, CRIMP CONNECTION, SIZE: 1
Catalog Description: Insert for industrial plug-in connectors, consisting of contact element and insulating body.
1003180000 Includes
01003180000 Standards
RoHS Compliant|UL File No. E92202|UL 94 V-0 Flammability Rating|CSA Certified|cULus Recognized|EAC Certified|REACH CompliantSKU #2387616Part Number #1003180000UNSPSC32151901UPC04032248698172
