Brand: Weidmuller

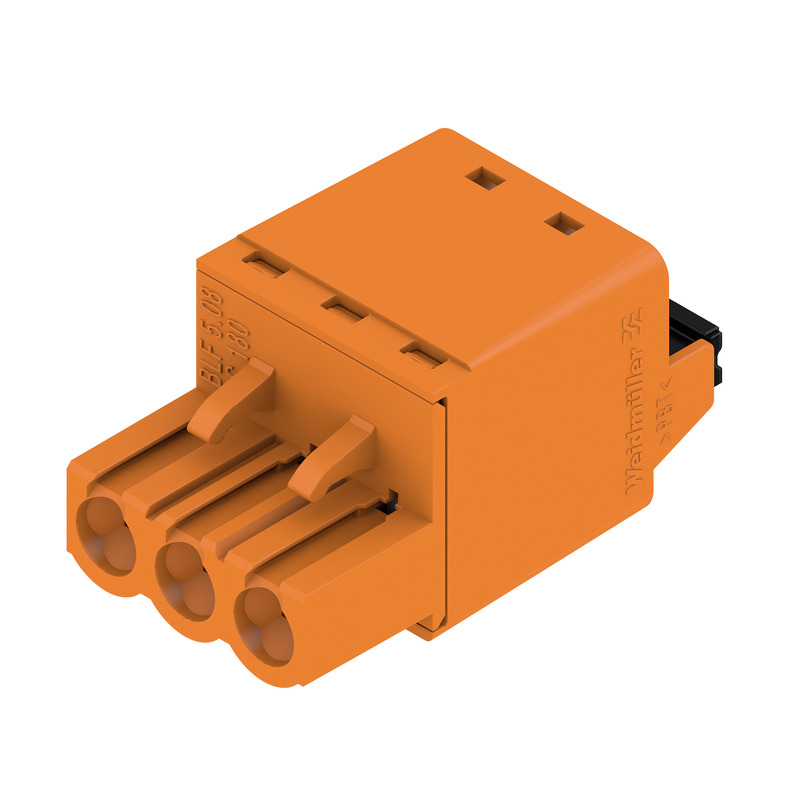

Weidmuller 1013690000 Omnimate Signal Pcb Plug-In Connector
Image Disclaimers Message
Brand: Weidmuller
Weidmuller 1013690000 Omnimate Signal Pcb Plug-In Connector
Brand: Weidmuller
Weidmuller 1013690000 Omnimate Signal Pcb Plug-In Connector
Part #:1013690000
SKU #: 2349514
$213.60/120EA
Key Features
Part #:1013690000
SKU #: 2349514
Brand: Weidmuller
Connector Type: Female Plug
Dimensions: 14.2 mm H x 15.24 mm W x 27.7 mm D
Number of Positions: 3
Series: BL/SL 5.08
Temperature Rating (Degrees F): -50 to 100 deg C
$213.60/120EA
- 3 tested-and-proven wire outlet directions provide the usual flexibility for application specific design
- 4 flange variations and the patented release latch allow the locking concept to be based on the requirements of the user
- Use the BLF 5.08HC and SL 5.08HC plug combination to reach the maximum rated specifications
- 400 V IEC, 300 V UL
Specifications
Brand: Weidmuller
Connector Type: Female Plug
Dimensions: 14.2 mm H x 15.24 mm W x 27.7 mm D
Number of Positions: 3
Series: BL/SL 5.08
Temperature Rating (Degrees F): -50 to 100 deg C
Termination Type: Push-In/Tension Clamp
Type: High Current Wire Connection
Voltage Rating: 300/400 V
Wire Size: 26 to 12 AWG
Color: Orange
Contact material: CuSn
Housing material: PBT
Insulation resistance: >=10^8 Ohm
UNSPSC: 31163101
UPC: 04032248853380
Weidmuller 1013690000 Omnimate Signal Pcb Plug-In Connector
Additional Description: WEID-1013690000 BLF 5.08HC/03/180 SN OR BX PCB PLUG-IN CONNECTOR (WIRE CONNECTION), 5.08 MM, NUMBER OF POLES: 3, PUSH IN WITH ACTUATOR
Catalog Description: Pluggable PCB connection with innovative connection technology for safe and intuitive handling.
