1013720000
Weidmuller 1013720000 Quick Disconnects
Part Number # 1013720000
SKU # 2426067
$256.34 / 72Each
Typical price:$295.13 / Each
Weidmuller 1013720000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1013720000 |
| SKU #: | 2426067 |
| Connector Type: | Female Plug |
| Dimensions: | 14.2 mm H x 25.4 mm W x 27.7 mm D |
| Number of Positions: | 5 |
| Series: | BL/SL 5.08 |
| Temperature Rating (Degrees F): | -50 to 100 deg C |
| Termination Type: | Push-In/Tension Clamp |
| Type: | High Current Wire Connection |
| Wire Size: | 26 to 12 AWG |
| Contact material: | CuSn |
| Country of origin: | DE |
| Housing material: | PBT |
| Insulation resistance: | >=10^8 Ohm |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163101 |
| UPC: | 04032248721832 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$256.34 / 72Each
Typical price:$295.13 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Plug-In Connector, High Current Wire Connection, Series: BL/SL 5.08, 5 Positions, 1 Rows, 5.08 mm Pitch/Row Spacing, 26 to 12 AWG Wire, 300/400 V, Female Plug Connector, Push-In/Tension Clamp Termination, CuSn Contact, >=10^8 Ohm Insulation Resistance, PBT Housing Material, -50 to 100 deg C, Orange, 14.2 mm H x 25.4 mm W x 27.7 mm D Dimensions
1013720000 Item Features
- 3 tested-and-proven wire outlet directions provide the usual flexibility for application specific design
- 4 flange variations and the patented release latch allow the locking concept to be based on the requirements of the user
- Use the BLF 5.08HC and SL 5.08HC plug combination to reach the maximum rated specifications
- 400 V IEC, 300 V UL
1013720000 Standards
RoHS Compliant|IEC 60664-1, 61984|CSA No. 200039-1121690|UL 1059|cULus No. E60693 Recognized|UL 94 V-0 Flammability Rating|EAC CertifiedSKU #2426067Part Number #1013720000UNSPSC31163101UPC04032248721832

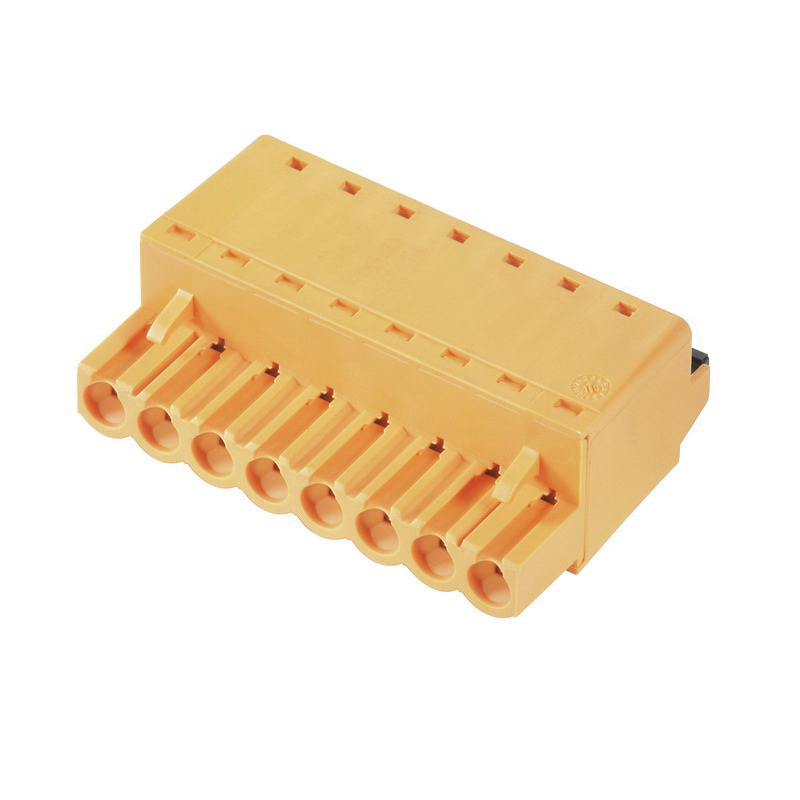

Image provided may only be a representation of final product and may include optional equipment
