Weidmuller 1013790000 Printed Circuit Board Pcb Press Fit Header Connector
Part Number # 1013790000
SKU # 2290844
1013790000
Weidmuller 1013790000 Printed Circuit Board Pcb Press Fit Header Connector
Part Number # 1013790000
SKU # 2290844
$255.90 / 30Each
Typical price:$294.51 / Each
Weidmuller 1013790000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1013790000 |
| SKU #: | 2290844 |
| Dimensions: | 14.2 mm H x 60.96 mm W x 27.7 mm D |
| UNSPSC: | 31163101 |
| UPC: | 04032248721900 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$255.90 / 30Each
Typical price:$294.51 / Each
Quantity:

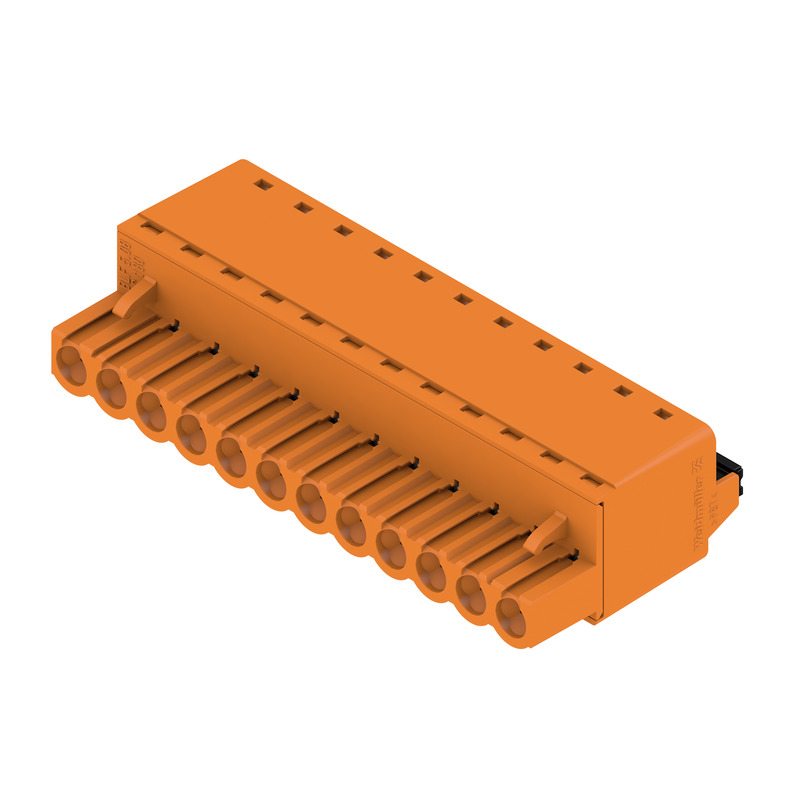

- Weidmuller OMNIMATE Signal PCB Plug-In Connector, High Current Wire Connection, Series: BL/SL 5.08, 12 Positions, 1 Rows, 5.08 mm Pitch/Row Spacing, 26 to 12 AWG Wire, 300/400 V, Female Plug Connector, Push-In/Tension Clamp Termination, CuSn Contact, >=10^8 Ohm Insulation Resistance, PBT Housing Material, -50 to 100 deg C, Orange, 14.2 mm H x 60.96 mm W x 27.7 mm D Dimensions
1013790000 Item Features
- 3 tested-and-proven wire outlet directions provide the usual flexibility for application specific design
- 4 flange variations and the patented release latch allow the locking concept to be based on the requirements of the user
- Use the BLF 5.08HC and SL 5.08HC plug combination to reach the maximum rated specifications
- 400 V IEC, 300 V UL
1013790000 Standards
RoHS Compliant|IEC 60664-1, 61984|CSA No. 200039-1121690|UL 1059|cULus No. E60693 Recognized|UL 94 V-0 Flammability Rating|EAC CertifiedSKU #2290844Part Number #1013790000UNSPSC31163101UPC04032248721900
Image provided may only be a representation of final product and may include optional equipment
