1014180000
Weidmuller 1014180000 Quick Disconnects
Part Number # 1014180000
SKU # 2355010
$227.52 / 36Each
Typical price:$262.01 / Each
Weidmuller 1014180000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1014180000 |
| SKU #: | 2355010 |
| Dimensions: | 14.3 mm H x 50.46 mm W x 29.6 mm D |
| UNSPSC: | 31163101 |
| UPC: | 04032248723157 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$227.52 / 36Each
Typical price:$262.01 / Each
Quantity:

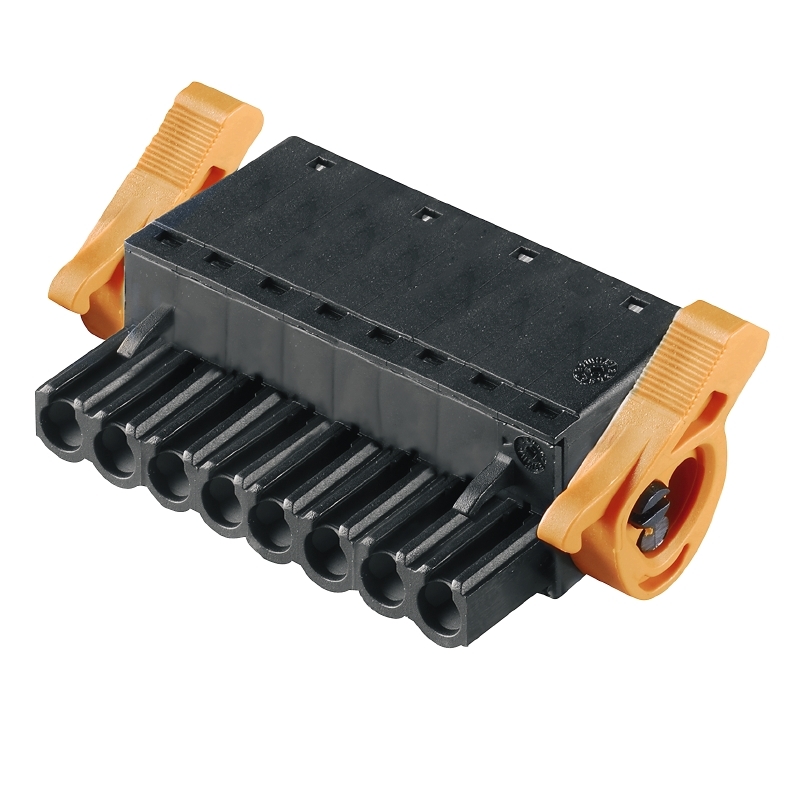

- Weidmuller OMNIMATE Signal PCB Plug-In Connector, High Current Wire Connection, Series: BL/SL 5.08, 8 Positions, 1 Rows, 5.08 mm Pitch/Row Spacing, 26 to 12 AWG Wire, 300/400 V, Female Plug Connector, Push-In/Tension Clamp Termination, CuSn Contact, >=10^8 Ohm Insulation Resistance, PBT Housing Material, -50 to 100 deg C, Black, 14.3 mm H x 50.46 mm W x 29.6 mm D Dimensions
1014180000 Item Features
- 3 tested-and-proven wire outlet directions provide the usual flexibility for application specific design
- 4 flange variations and the patented release latch allow the locking concept to be based on the requirements of the user
- Use the BLF 5.08HC and SL 5.08HC plug combination to reach the maximum rated specifications
- 400 V IEC, 300 V UL
1014180000 Standards
RoHS Compliant|IEC 60664-1, 61984|CSA No. 200039-1121690|UL 1059|cULus No. E60693 Recognized|UL 94 V-0 Flammability Rating|EAC CertifiedSKU #2355010Part Number #1014180000UNSPSC31163101UPC04032248723157
Image provided may only be a representation of final product and may include optional equipment
