1014400000
Weidmuller 1014400000 Electrical Terminal
Part Number # 1014400000
SKU # 1399476
$379.50 / 25Each
Typical price:$421.48 / Each
Weidmuller 1014400000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1014400000 |
| SKU #: | 1399476 |
| Dimensions: | 2.362 in H x 0.469 in W x 3.091 in D |
| Terminal Size: | 6 sq-mm |
| UNSPSC: | 39121410 |
| UPC: | 04008190051495 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$379.50 / 25Each
Typical price:$421.48 / Each
Quantity:

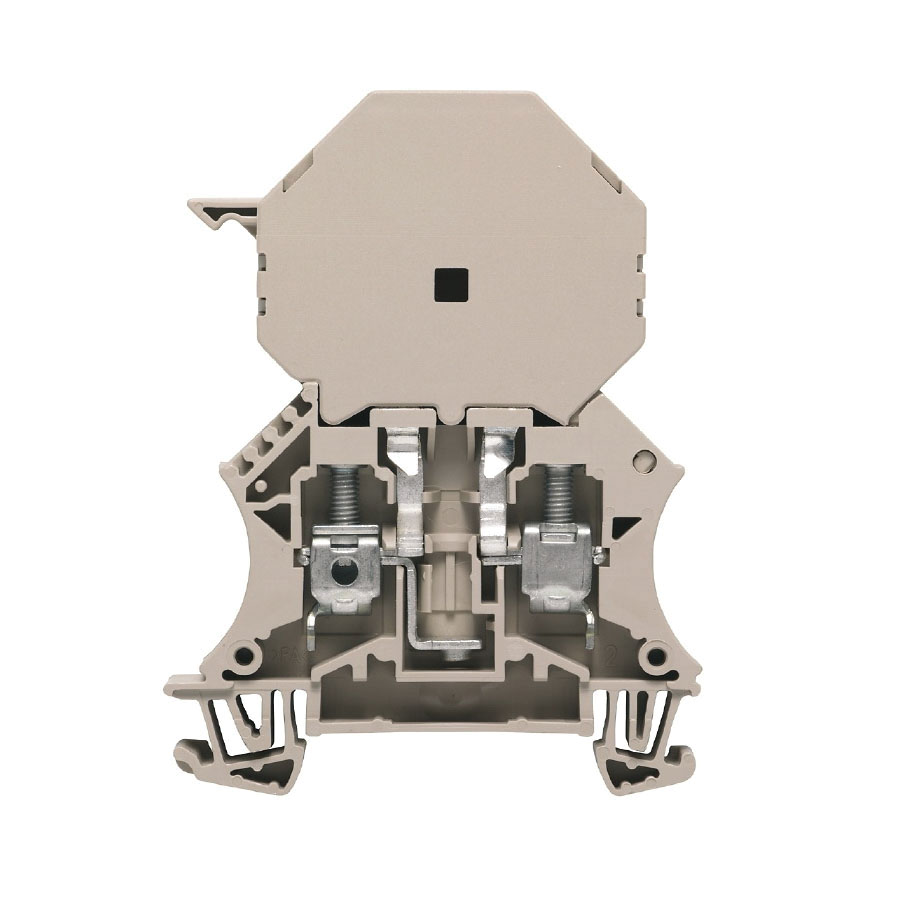

- Klippon Fuse Terminal Block, Series: W Series, 250 VAC, 6.3 A, 22 to 8 AWG Wire, 12 mm Wire Strip Length, 6 sq-mm Terminal, 0.8 to 1.6 N-m Torque, Snap-Fit Mounting, Screw Connection, -50 to 120 deg C, Wemid, Dark Beige, 2.362 in H x 0.469 in W x 3.091 in D Dimensions
1014400000 Item Features
- Fuse isolator, with LED, for screwable cross connection, one end without connector
- TS 35 mounting rail
- Right open sides
- 6 sq-mm further connection, conductor cross-section, flexible plus plastic collar DIN 46228/1
- 0.8 x 4 mm blade
- On side connection direction
- 0.5 to 10 sq-mm minimum/maximum clamping range, rated connection
- 0.5 to 6 sq-mm minimum/maximum rated wire connection cross-section, finely stranded with wire to end ferrules DIN 46228/1
- A5 gauge to IEC 60947to1
- 2 number of connections
- 3 torque level with DMS electric screwdriver
- 1 number of similar terminal
- 0.5 to 6 sq-mm minimum/maximum Wire connection cross to section, finely stranded with wire to end ferrules and plastic collars DIN 46228/4
- 60 to 150 VAC/DC operating voltage for display
- G-Si 1 x 1/4 cartridge fuse
- Pivoting fuse holder
- UL 94 flammability rating V-0
- 0.78 mOhm volume-resistance according to IEC 60947-7-x
- 6 kV rated impulse withstand voltage
- 3 pollution severity, WSI 6/2/LD 250AC type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
1014400000 Standards
UR|UL File No. E60693 Listed|CE Certified|CSA Certified|EAC|RoHS CompliantSKU #1399476Part Number #1014400000UNSPSC39121410UPC04008190051495
Image provided may only be a representation of final product and may include optional equipment
