1016500000
Weidmuller 1016500000 Electrical Terminal
Part Number # 1016500000
SKU # 2270874
$336.50 / 50Each
Typical price:$373.80 / Each
Weidmuller 1016500000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1016500000 |
| SKU #: | 2270874 |
| Dimensions: | 2.362 in H x 0.201 in W x 1.831 in D |
| Terminal Size: | 1.5 sq-mm |
| UNSPSC: | 39121410 |
| UPC: | 04008190170738 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$336.50 / 50Each
Typical price:$373.80 / Each
Quantity:
- Klippon Modular PE Terminal Block, 1-Tier, Series: W Series, 800 V AC, 12 to 2 AWG Wire, 7 mm Wire Strip Length, 1-1/2 sq-mm Terminal, 0.4 to 0.6 N-m, Screw Mount, Screw, -60 to 130 deg C, Wemid, Green/Yellow, 2.362 in H x 0.201 in W x 1.831 in D
1016500000 Item Features
- The W-Series is offered in standard and compact designs and he compact design is impressive with its small size for the design cross-sectional capacity
- The terminal unit consists of hardened steel, for very high contact force and he busbar is made of copper, which gives a low voltage drop
- Uniform size of the terminal block bodies from 2.5 to 10 sq-mm means fewer accessories, lowers the cost, offers logistical advantages and enables simple installation
- Safe operation
- UL 94 flammability rating V-0
- 1 number of potentials, 1 number of levels, 4 number of clamping points per level
- Explosion-tested version, right open sides
- 0.6 x 3.5 mm blade
- 1.83 mOhm volume-resistance
- One end without connector
- 8 kV rated impulse withstand voltage
- WPE 1.5/ZZ type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
1016500000 Standards
CSA Certified|UL File No. E60693 Listed|IEC 60947-7-1|RoHS CompliantSKU #2270874Part Number #1016500000UNSPSC39121410UPC04008190170738

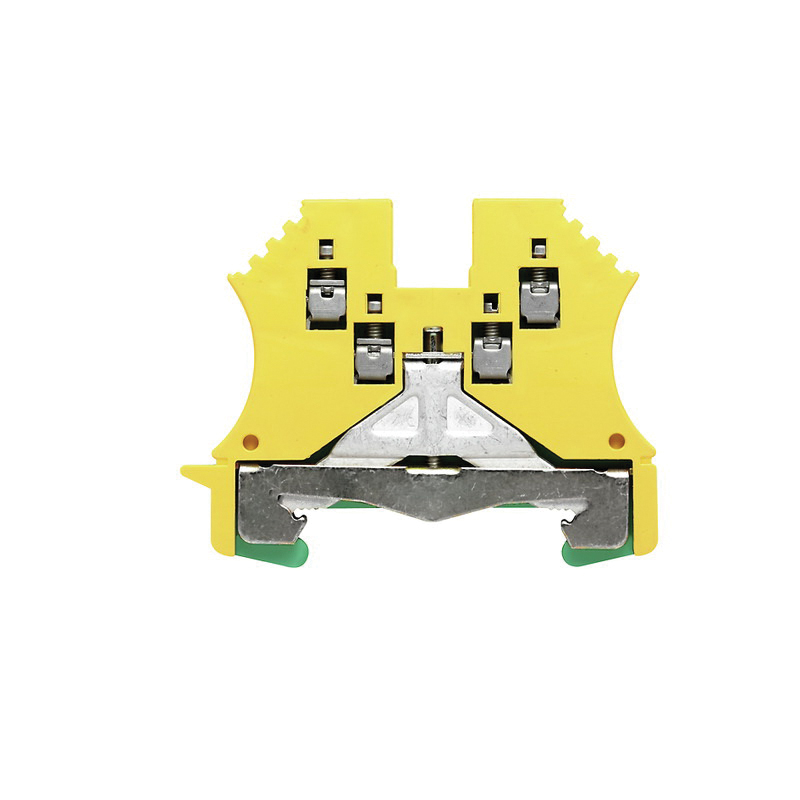

Image provided may only be a representation of final product and may include optional equipment
