Part Number # 1017000000
SKU # 2402984
Image Disclaimers Message
1017000000

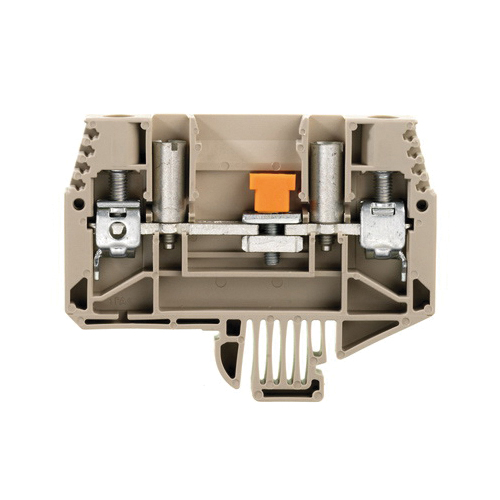

Weidmuller 1017000000 Klippon Test Disconnect Terminal Block
Part Number # 1017000000
SKU # 2402984
Weidmuller 1017000000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1017000000 |
| SKU #: | 2402984 |
| Amperage Rating: | 41 A |
| Dimensions: | 65 mm H x 7.9 mm W x 47.5 mm D |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Terminal Size: | M3.5 |
| Torque Rating: | 1 to 1.6 N-m |
| Type: | Longitudinal |
| Wire Size: | 6 sq-mm |
| Color: | Dark Beige |
| Connection type: | Screw |
| Country of origin: | DE |
| Material: | Wemid |
| Mounting type: | Snap-On |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 00040081901690 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1017000000 Klippon Test Disconnect Terminal Block
Brand: Weidmuller
Part Number: 1017000000
Klippon Test Disconnect Terminal Block, Longitudinal, 630 V, 41 A, 6 sq-mm Wire, 12 mm Wire Strip Length, M3.5 Terminal, 1 to 1.6 N-m Torque, Snap-On Mounting, Screw Connection, -50 to 120 deg C, Wemid, Dark Beige, 65 mm H x 7.9 mm W x 47.5 mm D Dimensions
Additional Description: WEID-1017000000 (D) WTL 6/1/STB/32 TEST-DISCONNECT TERMINAL, SCREW CONNECTION, 6 MM, 630 V, 41 A, SLIDING, CROSS-DISCONNECT: WITHOUT, INTEGRAL TEST SOCKET: YES, TS 32, DARK BEIGE
Catalog Description: Terminal block for separating circuits during tests or measurements.
1017000000 Includes
01017000000 Item Features
- Current and voltage transformer wiring
- Our test disconnect terminal blocks featuring spring and screw connection technology allow you to create all the important converter circuits for measuring current, voltage and power in a safe and sophisticated way
1017000000 Standards
RoHS Compliant|UL File No. E60693|UL 94 V-0 Flammability Rating|CSA File No. 200039-1057876|UL File No. E60693|CE Certified|DNV-GL Approved|EAC Certified|KEMA-KEUR Certified|PRMS Certified|UL/cULus File No. E60693|CSA File No. 200039-1057876SKU #2402984Part Number #1017000000UNSPSC39121410UPC00040081901690
