1018100000
Weidmuller 1018100000 Electrical Terminal
Part Number # 1018100000
SKU # 2345824
$334.50 / 50Each
Typical price:$371.30 / Each
Weidmuller 1018100000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1018100000 |
| SKU #: | 2345824 |
| Amperage Rating: | 41 A |
| Dimensions: | 65 mm H x 7.9 mm W x 47.5 mm D |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Terminal Size: | M3.5 |
| Torque Rating: | 1 to 1.6 N-m |
| Wire Size: | 6 sq-mm |
| Connection type: | Screw |
| Country of origin: | CZ |
| Material: | Wemid |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190061432 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$334.50 / 50Each
Typical price:$371.30 / Each
Quantity:

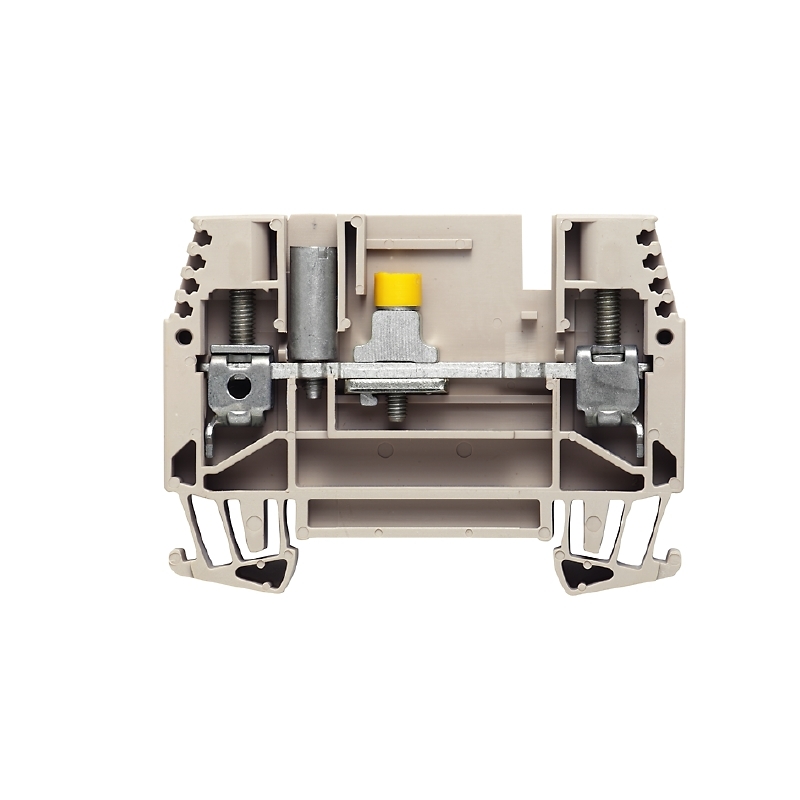

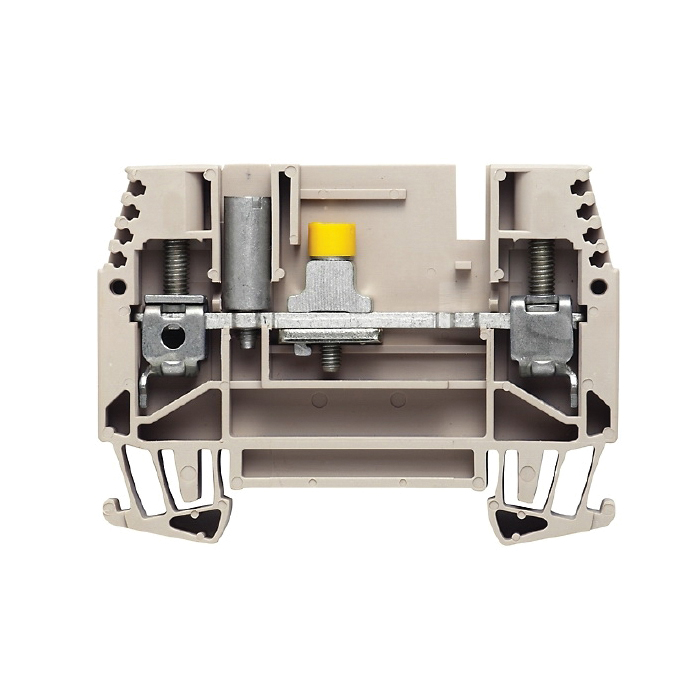

- Klippon Test Disconnect Terminal Block, 500 V, 41 A, 6 sq-mm Wire, 12 mm Wire Strip Length, M3.5 Terminal, 1 to 1.6 N-m Torque, Snap-Fit Mounting, Screw Connection, -50 to 120 deg C, Wemid, Dark Beige, 65 mm H x 7.9 mm W x 47.5 mm D Dimensions
1018100000 Item Features
- Our test disconnect terminal blocks featuring spring and screw connection technology allow you to create all the important converter circuits for measuring current, voltage and power in a safe and sophisticated way
- Current and voltage transformer wiring
1018100000 Standards
RoHS Compliant|UL File No. E60693|REACH SVHC Lead 7439-92-1|UL 94 V-0 Flammability Rating|UL/cULus File No. E60693|CSA File No. 200039-1057876|CE Certified|EAC Certified|KEMA-KEUR CertifiedSKU #2345824Part Number #1018100000UNSPSC39121410UPC04008190061432
Image provided may only be a representation of final product and may include optional equipment
