Part Number # 1019700000
SKU # 2140547
Image Disclaimers Message
1019700000

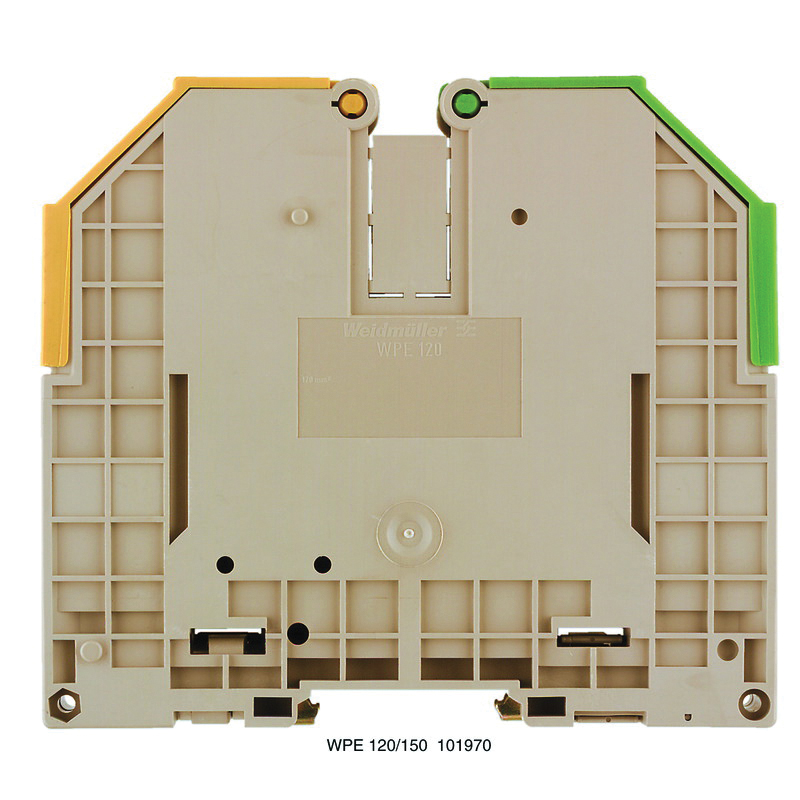

Weidmuller 1019700000 Electrical Terminal
Part Number # 1019700000
SKU # 2140547
$860.80 / 10Each
Typical price:$934.36 / Each
Weidmuller 1019700000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1019700000 |
| SKU #: | 2140547 |
| Dimensions: | 132 mm H x 32 mm W x 117 mm D |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Terminal Size: | M10 |
| Torque Rating: | 10 to 20 N-m |
| Wire Size: | 120 sq-mm |
| Color: | Green/Yellow |
| Connection type: | Screw |
| Country of origin: | CZ |
| Material: | Wemid |
| Mounting type: | Screw-In |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190495671 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$860.80 / 10Each
Typical price:$934.36 / Each
Quantity:
Weidmuller 1019700000 Electrical Terminal
Brand: Weidmuller
Part Number: 1019700000
Additional Description: WEID-1019700000 WPE 120/150 PE TERMINAL, SCREW CONNECTION, 120 MM, 1000 V, NUMBER OF CONNECTIONS: 2, NUMBER OF LEVELS: 1, GREEN/YELLOW
Catalog Description: Terminal block for connecting protective earth conductors to the mounting base (earth). Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
1019700000 Item Features
- Power feed-in
- Our wide range of W-series terminal blocks with our WPD main line branch terminals, which are optimized to guarantee both convenience and space gains, ensures a secure and convenient connection at the power feed-in
1019700000 Standards
RoHS Compliant|UL File No. E60693|UL 94 V-0 Flammability Rating|CSA File No. 12400-382|UL File No. E60693|ATEX File No. DEMKO14ATEX1338U|IECEX IECEXULD14.0005U|Marking EN 60079-7: Ex eb II C Gb|Ex 2014/34/EU label: II 2 G D|IEC 60947-7-2|CE Certified|EAC Certified|KEMA-KEUR Certified|N INMETRO|UL/cULus File No. E60693|CSA File No. 12400-382|ATEX File No. DEMKO14ATEX1338U|IECEX File No. IECEXULD14.0005U|EN 60079-7: Ex eb II C Gb|Ex 2014/34/EU Label: II 2 G DSKU #2140547Part Number #1019700000UNSPSC39121410UPC04008190495671
