1020280000

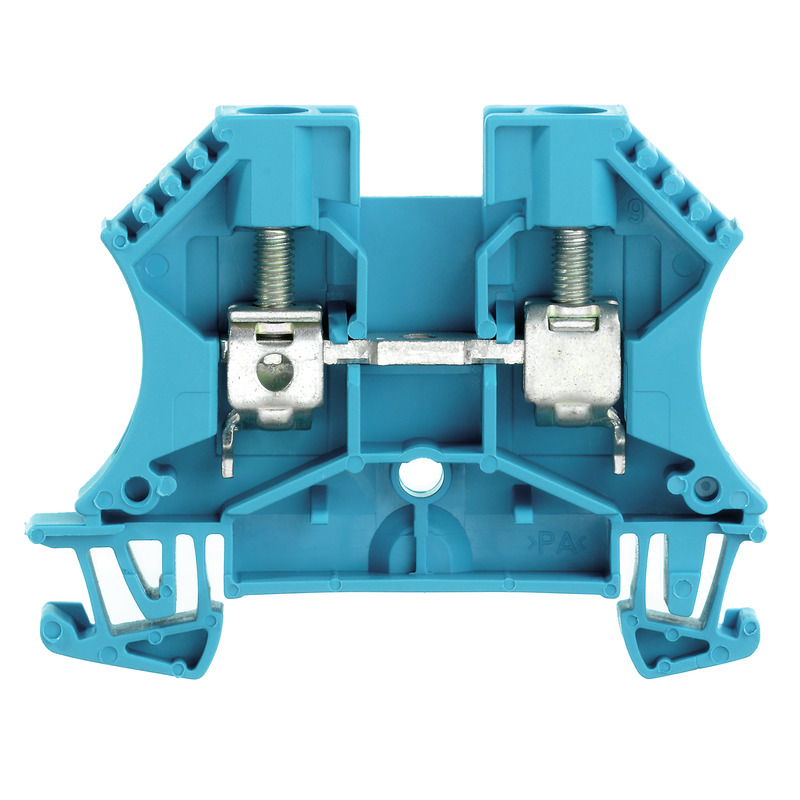

Weidmuller 1020280000 Electrical Terminal
Part Number # 1020280000
SKU # 2134982
$198.00 / 100Each
Typical price:$219.30 / Each
Weidmuller 1020280000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1020280000 |
| SKU #: | 2134982 |
| Amperage Rating: | 41 A |
| Dimensions: | 60 mm H x 7.9 mm W x 46.5 mm D |
| Series: | W Series |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Terminal Size: | M3.5 |
| Torque Rating: | 0.8 to 1.6 N-m |
| Type: | Feed-Through Standard |
| Wire Size: | 6 sq-mm |
| Connection type: | Screw |
| Country of origin: | DE |
| Material: | Wemid |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190100032 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$198.00 / 100Each
Typical price:$219.30 / Each
Quantity:
- Klippon Terminal Block, Feed-Through Standard, Series: W Series, 800 V, 41 A, 6 sq-mm Wire, 12 mm Wire Strip Length, M3.5 Terminal, 0.8 to 1.6 N-m Torque, Snap-Fit Mounting, Screw Connection, -60 to 130 deg C, Wemid, Blue, 60 mm H x 7.9 mm W x 46.5 mm D Dimensions
1020280000 Item Features
- Klippon connect with clamping yoke technology
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
1020280000 Standards
RoHS Compliant|UL/cULus File No. E60693|ATEX File No. DEMKO14ATEX1338U|IECEX File No. IECEXULD14.0005U|Ex 2014/34/EU Label: II 2 G D|EN 60079-7 Ex eb II C Gb|CE Certified|CSA Certified|CSAEX Certified|cULus Ex Recognized|DNV-GL Approved|EAC Certified|INMETRO Certified|IEC 60947-7-1|KEMA-KEUR Certified|Lloyds Register|RMRS Certified|N Approved|UL 94 V-0 Flammability Rating|Exi CertifiedSKU #2134982Part Number #1020280000UNSPSC39121410UPC04008190100032
Image provided may only be a representation of final product and may include optional equipment
