Part Number # 1020380000
SKU # 2395603
Image Disclaimers Message
1020380000

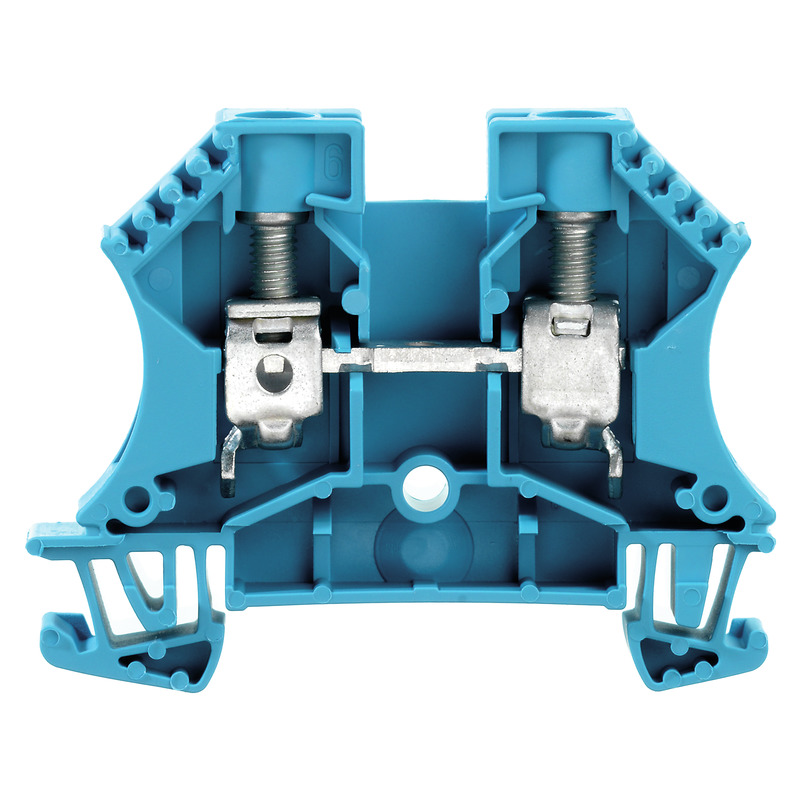

Weidmuller 1020380000 Klippon Terminal Block
Part Number # 1020380000
SKU # 2395603
Weidmuller 1020380000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1020380000 |
| SKU #: | 2395603 |
| Amperage Rating: | 57 A |
| Dimensions: | 60 mm H x 9.9 mm W x 46.5 mm D |
| Series: | W Series |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Terminal Size: | M4 |
| Torque Rating: | 1.2 to 1.9 N-m |
| Type: | Feed-Through Standard |
| Wire Size: | 10 sq-mm |
| Color: | Blue |
| Connection type: | Screw |
| Country of origin: | DE |
| Material: | Wemid |
| Mounting type: | Snap-On |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190166359 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1020380000 Klippon Terminal Block
Brand: Weidmuller
Part Number: 1020380000
Klippon Terminal Block, Feed-Through Standard, Series: W Series, 1000 V, 57 A, 10 sq-mm Wire, 12 mm Wire Strip Length, M4 Terminal, 1.2 to 1.9 N-m Torque, Snap-On Mounting, Screw Connection, -60 to 130 deg C, Wemid, Blue, 60 mm H x 9.9 mm W x 46.5 mm D Dimensions
Additional Description: WEID-1020380000 WDU 10 BL FEED-THROUGH TERMINAL BLOCK, SCREW CONNECTION, 10 MM, 1000 V, 57 A, NUMBER OF CONNECTIONS: 2
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
1020380000 Includes
01020380000 Item Features
- Klippon connect with clamping yoke technology
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
1020380000 Standards
RoHS Compliant|UL/cULus File No. E60693|ATEX File No. DEMKO14ATEX1338U|IECEX File No. IECEXULD14.0005U|Ex 2014/34/EU Label: II 2 G D|EN 60079-7 Ex eb II C Gb|CE Certified|CSA Certified|CSAEX Certified|cULus Ex Recognized|DNV-GL Approved|EAC Certified|INMETRO Certified|IEC 60947-7-1|KEMA-KEUR Certified|Lloyds Register|RMRS Certified|N Approved|UL 94 V-0 Flammability Rating|Exi CertifiedSKU #2395603Part Number #1020380000UNSPSC39121410UPC04008190166359
