1020800000
Weidmuller 1020800000 Terminal Blocks
Part Number # 1020800000
SKU # 2432340
$168.64 / 10Each
Typical price:$187.33 / Each
Weidmuller 1020800000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1020800000 |
| SKU #: | 2432340 |
| Amperage Rating: | 24 A |
| Dimensions: | 60 mm H x 51 mm W x 46.5 mm D |
| Series: | W Series |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Terminal Size: | M2.5 |
| Type: | Feed-Through Pre-Fitted |
| Wire Size: | 2.5 sq-mm |
| Connection type: | Screw |
| Country of origin: | DE |
| Material: | Wemid |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190133368 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$168.64 / 10Each
Typical price:$187.33 / Each
Quantity:

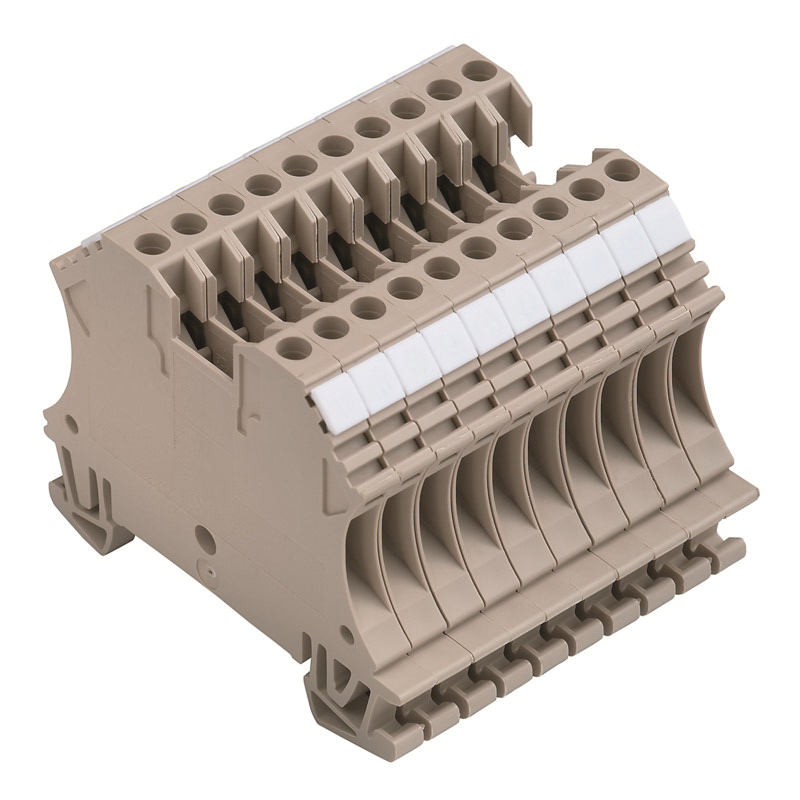

- Klippon Terminal Block, Feed-Through Pre-Fitted, Series: W Series, 500 V, 24 A, 1 Pole, 2.5 sq-mm Wire, 10 mm Wire Strip Length, M2.5 Terminal, Snap-Fit Mounting, Screw Connection, -60 to 130 deg C, Wemid, Dark Beige, 60 mm H x 51 mm W x 46.5 mm D Dimensions
1020800000 Item Features
- Klippon connect with clamping yoke technology
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
1020800000 Standards
RoHS Compliant|CSA File No. 200039-1057876|ATEX File No. DEMKO14ATEX1338U|IECEX File No. IECEXULD14.0005U|Ex 2014/34/EU Label: II 2 G D|EN 60079-7|UL 94 V-0 Flammability Rating|CE Certified|EAC Certified|KEMA-KEUR CertifiedSKU #2432340Part Number #1020800000UNSPSC39121410UPC04008190133368
Image provided may only be a representation of final product and may include optional equipment
