1021000000
Weidmuller 1021000000 Electrical Terminal
Part Number # 1021000000
SKU # 2125995
$208.30 / 10Each
Typical price:$231.35 / Each
Weidmuller 1021000000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1021000000 |
| SKU #: | 2125995 |
| Dimensions: | 2.362 in H x 0.24 in W x 2.461 in D |
| Terminal Size: | 4 sq-mm |
| UNSPSC: | 39121410 |
| UPC: | 04008190076924 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$208.30 / 10Each
Typical price:$231.35 / Each
Quantity:

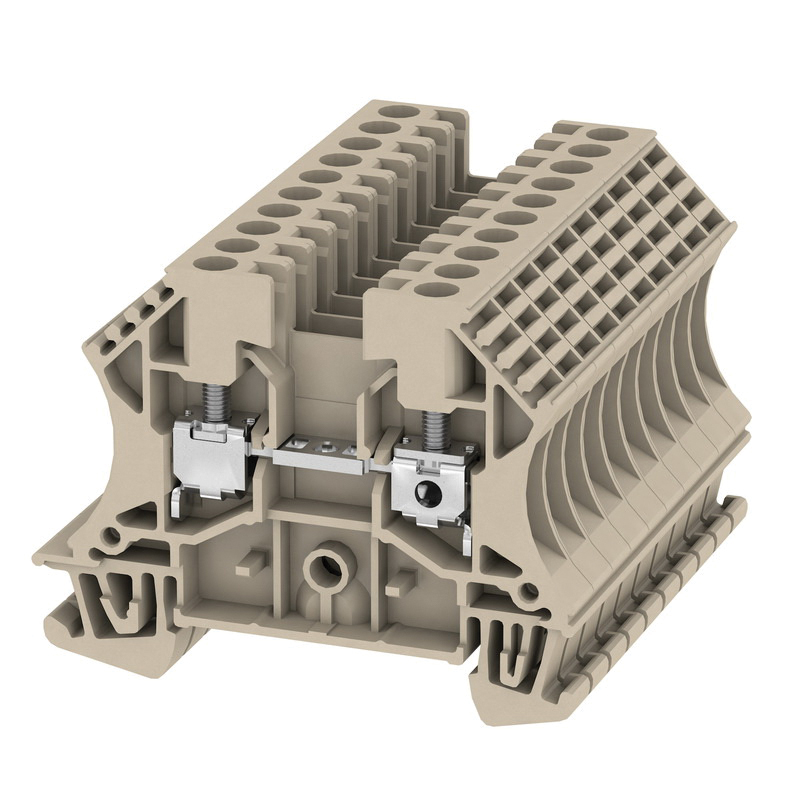

- Klippon Feed-Through Terminal Block, 1-Tier, Series: W Series, 800 V AC, 32 A, 26 to 10 AWG Wire, 4 sq-mm Terminal, Snap-Fit Mount, Screw, -60 to 130 deg C, Wemid, Dark Beige, 2.362 in H x 0.24 in W x 2.461 in D
1021000000 Item Features
- The W-Series is offered in standard and compact designs and he compact design is impressive with its small size for the design cross-sectional capacity
- The terminal unit consists of hardened steel, for very high contact force and he busbar is made of copper, which gives a low voltage drop
- Uniform size of the terminal block bodies from 2.5 to 10 sq-mm means fewer accessories, lowers the cost, offers logistical advantages and enables simple installation
- Safe operation
- UL 94 flammability rating V-0
- 1 number of potentials, 1 number of levels, 2 number of clamping points per level
- Explosion-tested version, right open sides
- 1 mOhm volume-resistance
- For screwable cross-connection, one end without connector
- WDU 4/10 type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
1021000000 Standards
CSA Certified|UL File No. E60693 Listed|IEC 60947-7-1|RoHS CompliantSKU #2125995Part Number #1021000000UNSPSC39121410UPC04008190076924
Image provided may only be a representation of final product and may include optional equipment
