1022380000
Weidmuller 1022380000 Electrical Terminal
Part Number # 1022380000
SKU # 2332633
$342.00 / 50Each
Typical price:$380.05 / Each
Weidmuller 1022380000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1022380000 |
| SKU #: | 2332633 |
| Dimensions: | 69.5 mm H x 5.1 mm W x 62.5 mm D |
| Type: | Double Tier Feed-Through Modular Plug-In |
| UNSPSC: | 39121410 |
| UPC: | 04008190168841 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$342.00 / 50Each
Typical price:$380.05 / Each
Quantity:
- Klippon Terminal Block, Double Tier Feed-Through Modular Plug-In, Series: W Series, 400 V, 24 A, 2.5 sq-mm Wire, 10 mm Wire Strip Length, M2.5 Terminal, 0.4 to 0.6 N-m Torque, Snap-Fit Mounting, Screw Connection, -50 to 120 deg C, Wemid, Blue, 69.5 mm H x 5.1 mm W x 62.5 mm D Dimensions
1022380000 Item Features
- Klippon connect with clamping yoke technology
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
1022380000 Standards
RoHS Compliant|UL File No. E60693|UL 94 V-0 Flammability Rating|UL/cULus File No. E60693|CSA File No. 12400-135|ATEX File No. DEMKO15ATEX1346U|IECEX File No. IECEXULD15.0003U|EN 60079-7: Ex eb II C Gb|Ex 2014/34/EU Label: II 2 G D|CE Certified|cULus Listed|DNV-GL Approved|EAC Certified|IEC Ex Certified|KEMA-KEUR Certified|N ApprovedSKU #2332633Part Number #1022380000UNSPSC39121410UPC04008190168841

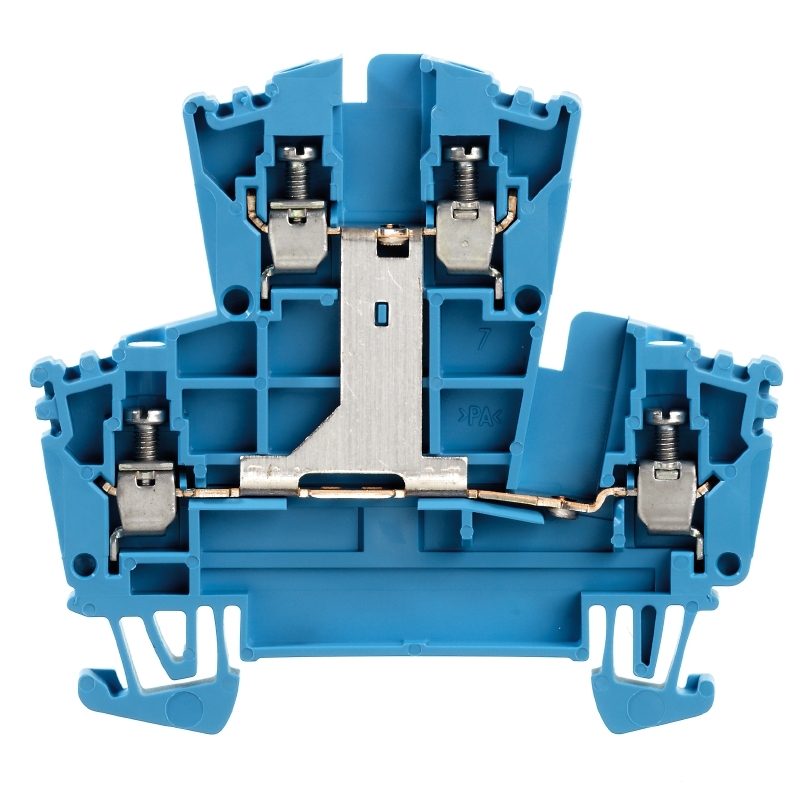

Image provided may only be a representation of final product and may include optional equipment
