1022600000
Weidmuller 1022600000 Electrical Terminal
Part Number # 1022600000
SKU # 2298211
$306.50 / 25Each
Typical price:$340.48 / Each
Weidmuller 1022600000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1022600000 |
| SKU #: | 2298211 |
| Amperage Rating: | 10 A |
| Dimensions: | 69 mm H x 5.1 mm W x 62.5 mm D |
| Series: | W Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Terminal Size: | M2.5 |
| Torque Rating: | 0.4 to 0.6 N-m |
| Wire Size: | 2.5 sq-mm |
| Connection type: | Screw |
| Country of origin: | RO |
| Material: | Wemid |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190098469 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$306.50 / 25Each
Typical price:$340.48 / Each
Quantity:

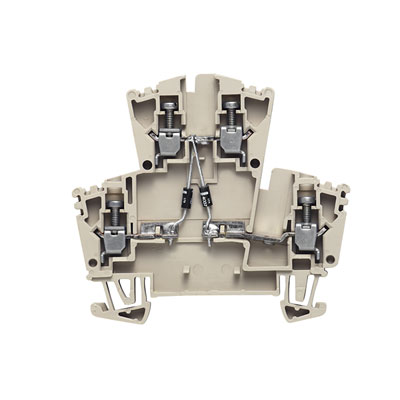

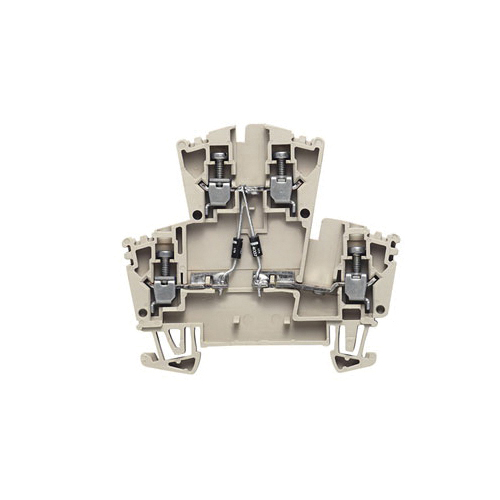

- Klippon Terminal Block, Series: W Series, 400 V, 10 A, 2.5 sq-mm Wire, 10 mm Wire Strip Length, M2.5 Terminal, 0.4 to 0.6 N-m Torque, Snap-Fit Mounting, Screw Connection, -50 to 120 deg C, Wemid, Dark Beige, 69 mm H x 5.1 mm W x 62.5 mm D Dimensions
1022600000 Application
For lamp test circuits1022600000 Item Features
- Klippon connect with clamping yoke technology
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
1022600000 Standards
RoHS Compliant|UL File No. E60693|UL 94 V-0 Flammability Rating|UL/cULus File No. E60693|CSA File No. 200039-1494105|CE Certified|EAC CertifiedSKU #2298211Part Number #1022600000UNSPSC39121410UPC04008190098469
Image provided may only be a representation of final product and may include optional equipment
