Brand: Weidmuller
Weidmuller 1023300000 Electrical Terminal
Part Number # 1023300000
SKU # 2175604
Brand: Weidmuller
1023300000
Weidmuller 1023300000 Electrical Terminal
Part Number # 1023300000
SKU # 2175604
$193.75 / 25Each
Typical price:$215.33 / Each
Weidmuller 1023300000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1023300000 |
| SKU #: | 2175604 |
| Dimensions: | 2.717 in H x 0.201 in W x 2.461 in D |
| UNSPSC: | 39121410 |
| UPC: | 04008190187200 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$193.75 / 25Each
Typical price:$215.33 / Each
Quantity:
Weidmuller 1023300000 Electrical Terminal
Brand: Weidmuller
Part Number: 1023300000

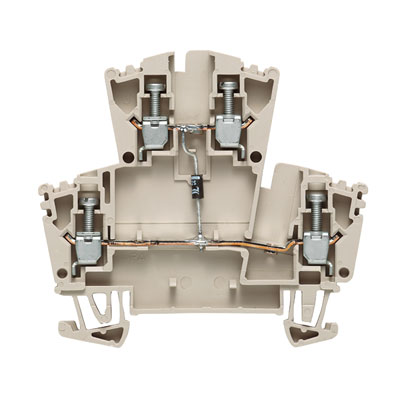

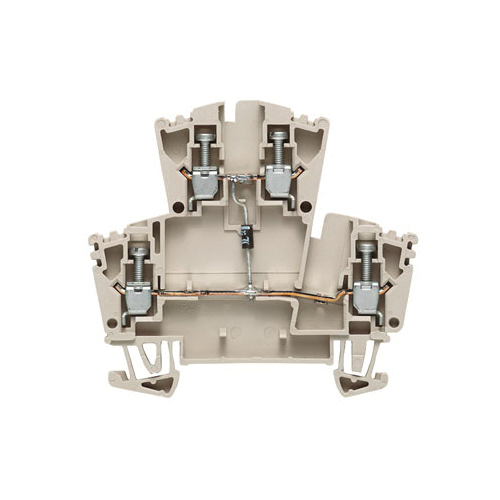

Additional Description: WEID-1023300000 WDK 2.5 1D A.2 COMPONENT TERMINAL BLOCK, SCREW CONNECTION, 2.5 MM, 400 V, 0.5 A, DIODE 1N 4007, TS 35, DARK BEIGE
Catalog Description: Terminal block with electronic components.
1023300000 Item Features
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimises operational safety
- Klippon connect provides a proven response to a range of different requirements
- UL94 flammability rating - V-0
- Version - screw connection, for screwable cross connection, one end without connector
- End cover plate required
- One potential and two level
- Two clamping points per level
- One potential per tier
- TS 35 mounting rail
- 0.5 to 2.5 sq-mm twin wire end ferrules
- On side connection direction
- 10 A current at maximum wires
- 2.66 M3.0 volume resistance according to IEC 60947-7-x
- 6 kV rated impulse withstand voltage
- 3 pollution severity
- 2-tier
- Lead free
- M2.5 screw connection
1023300000 Standards
CE|CSA Certified|EAC Approved|IEC 60947-7-1, UR Listed|UL E60693|RoHS CompliantSKU #2175604Part Number #1023300000UNSPSC39121410UPC04008190187200
Image provided may only be a representation of final product and may include optional equipment
