Weidmuller 1024400000 Electrical Terminal
Part Number # 1024400000
SKU # 2122645
1024400000
Weidmuller 1024400000 Electrical Terminal
Part Number # 1024400000
SKU # 2122645
Weidmuller 1024400000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1024400000 |
| SKU #: | 2122645 |
| Dimensions: | 60 mm H x 10.2 mm W x 50 mm D |
| Type: | Feed-Through Type SR |
| UNSPSC: | 39121410 |
| UPC: | 04008190116675 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1024400000 Electrical Terminal
Brand: Weidmuller
Part Number: 1024400000

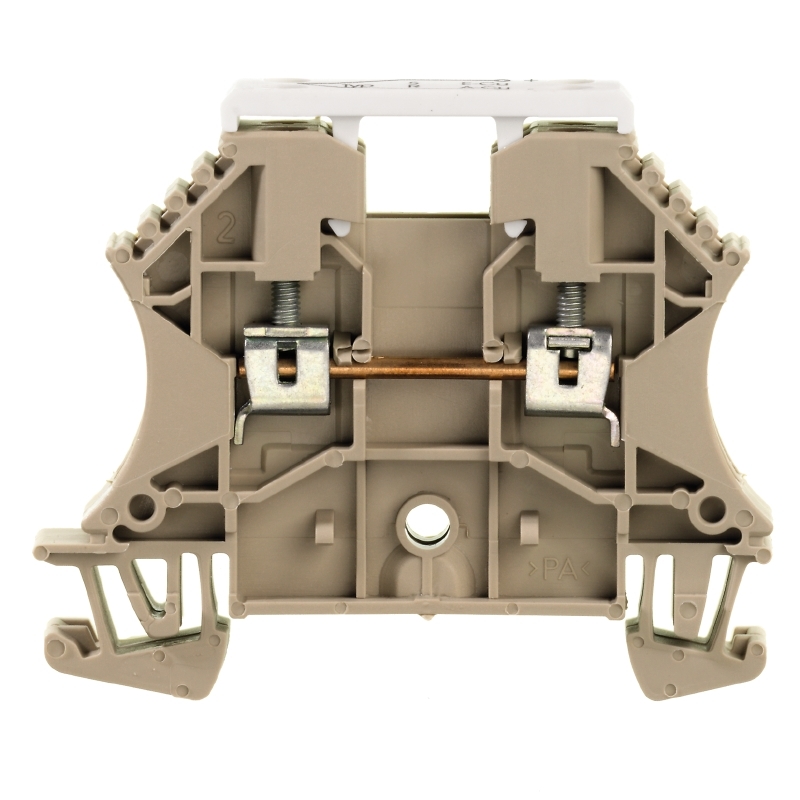

Additional Description: WEID-1024400000 WDU 2.5/TC TYP SR THERMOCOUPLE TERMINAL, SCREW CONNECTION, 2.5, DARK BEIGE
Catalog Description: The thermocouple terminal is specially designed for the transmission of very small voltages in temperature measuring circuits. Special current rails ensure that no erroneous signals can be generated in the terminal in the case of temperature differences.
1024400000 Application
For temperature measuring circuits1024400000 Item Features
- Our test disconnect terminal blocks featuring spring and screw connection technology allow you to create all the important converter circuits for measuring current, voltage and power in a safe and sophisticated way
1024400000 Standards
RoHS Compliant|ATEX File No. DEMKO14ATEX1338U|IECEX File No. IECEXULD14.0005U|Ex 2014/34/EU Label: II 2 G D|EN 60079-7|UL 94 V-0 Flammability Rating|CE Certified|CSA Certified|CSAEX Certified|EAC Certified|KEMA-KEUR Certified|INMETRO Certified|Exi Certified|IECEX-SIRA CertifiedSKU #2122645Part Number #1024400000UNSPSC39121410UPC04008190116675
Image provided may only be a representation of final product and may include optional equipment
