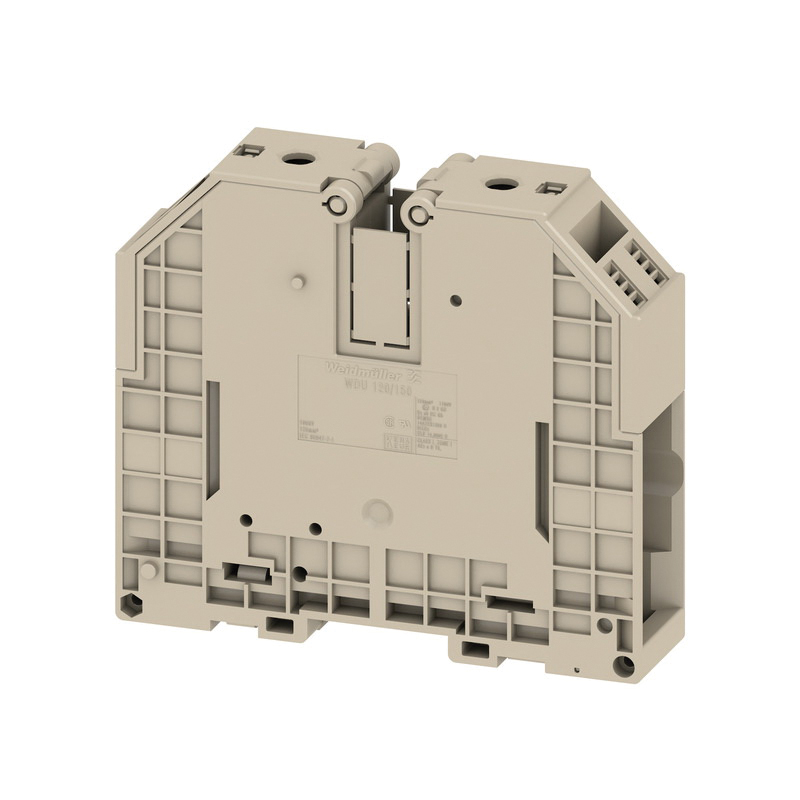

Weidmuller 1024500000 Terminal Block

42078 MFG #: 1024500000
$450.40 / EA
Usually Ships within 5-8 Days

Weidmuller 1024500000 Terminal Block

Weidmueller 1024500000 Feed Through Terminal, W-Series Single Tier, 2 Terminal, Wire Size: 250 KCMIL Factory Wiring(Max)UL, 2 AWG Factory Wiring(min) UL, 250 KCMIL Factory Wiring(Max)UL, 2 AWG Field Wiring(min) UL, 250 - 2 AWG CSA, M10 Terminal, 309 AMP Rated, 225 AMP UL, 285 AMP CSA, 234 AMP ATEX, Voltage Rating: 1000 V Rated, 1000 V UL, 600 V CSA, 1100 V ATEX, Material: V-0 UL 94 Flammable Wemid, Beige, Mounting: Snap-On in TS 35, Screw On Side Connection, 132 MM Length X 32 MM Width X 117 MM

Additional Description: WEID-1024500000 (T) WDU 120/150 ALLEN HEAD,WM,BG

Catalog Description: Weidmueller 1024500000 Feed Through Terminal, W-Series Single Tier, 2 Terminal, Wire Size: 250 KCMIL Factory Wiring(Max)UL, 2 AWG Factory Wiring(min) UL, 250 KCMIL Factory Wiring(Max)UL, 2 AWG Field Wiring(min) UL, 250 - 2 AWG CSA, M10 Terminal, 309 AMP Rated, 225 AMP UL, 285 AMP CSA, 234 AMP ATEX, Voltage Rating: 1000 V Rated, 1000 V UL, 600 V CSA, 1100 V ATEX, Material: V-0 UL 94 Flammable Wemid, Beige, Mounting: Snap-On in TS 35, Screw On Side Connection, 132 MM Length X 32 MM Width X 117 MM Height, 2 Clamping Points Per Level, 8 KV Rated Impulse Withstand Voltage, -50 To 120 DEG C Continuous Operating Temperature, 150 SQ-MM Wire Connection Cross Section, UL E60693VOL1SEC38 Listed, CSA 12400-241 Certified, IECEx 60947-7-1 Certified, ATEX KEMA98ATEX1686U Certified, CURUSEX, CE Certified, PCT ME25, ROHS Compliant
