1028400000

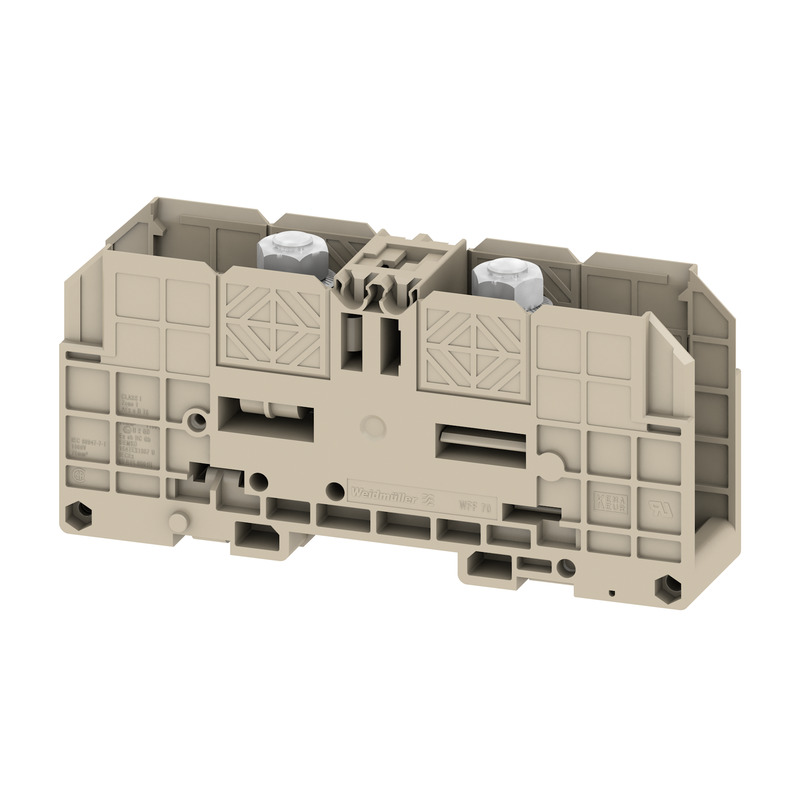

Weidmuller 1028400000 Electrical Terminal
Part Number # 1028400000
SKU # 2294038
$181.70 / 10Each
Typical price:$201.79 / Each
Weidmuller 1028400000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1028400000 |
| SKU #: | 2294038 |
| Amperage Rating: | 192 A |
| Dimensions: | 132 mm H x 31.8 mm W x 61 mm D |
| Series: | WFF |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Terminal Type: | Bolt Screw |
| Torque Rating: | 6 to 12 N-m |
| Type: | Feed-Through |
| Wire Size: | 70 sq-mm |
| Connection type: | Threaded/Stud |
| Country of origin: | CZ |
| Material: | Wemid |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190083311 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$181.70 / 10Each
Typical price:$201.79 / Each
Quantity:
- Klippon Terminal Block, Feed-Through, Series: WFF, 1 kV, 192 A, 70 sq-mm Wire, Bolt Screw Terminal, 6 to 12 N-m Torque, Snap-Fit Mounting, Threaded/Stud Connection, -50 to 120 deg C, Wemid, Dark Beige, 132 mm H x 31.8 mm W x 61 mm D Dimensions
1028400000 Item Features
- Klippon connect with stud technology
- Our stud terminals are an established, robust connection alternative for particularly harsh environments
- The extensive accessories and quality workmanship ensure high productivity in planning and installation and sustainable safety in operation
1028400000 Standards
RoHS Compliant|UL File No. E60693|UL 94 V-0 Flammability Rating|CSA File No. 200039-1244019|UL File No. E60693|ATEX File No. KEMA98ATEX1684U|IECEX IECEXKEM07.0053U|Marking EN 60079-7: Ex eb II C Gb|Ex 2014/34/EU label: II 2 G D|CE Certified|CSAEX Certified|cULus Listed|DNV-GL Approved|EAC Certified|KEMA-KEUR Certified|PRMS Certified|UL/cULus File No. E60693|CSA File No. 200039-1244019|ATEX File No. KEMA98ATEX1684U|IECEX File No. IECEXKEM07.0053U|EN 60079-7: Ex eb II C Gb|Ex 2014/34/EU Label: II 2 G DSKU #2294038Part Number #1028400000UNSPSC39121410UPC04008190083311
Image provided may only be a representation of final product and may include optional equipment
