1028500000

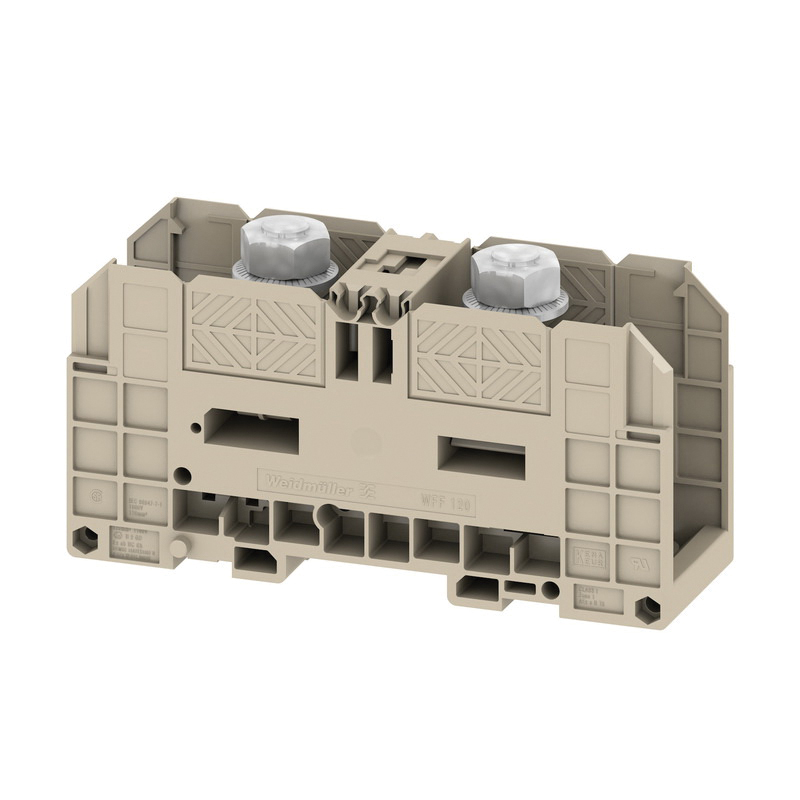

Weidmuller 1028500000 Electrical Terminal
Part Number # 1028500000
SKU # 2260800
$129.50 / 5Each
Typical price:$143.84 / Each
Weidmuller 1028500000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1028500000 |
| SKU #: | 2260800 |
| Amperage Rating: | 269 A |
| Dimensions: | 5.197 in H x 1.654 in W x 2.835 in D |
| Terminal Size: | 120 sq-mm |
| Type: | 2-Stud |
| UNSPSC: | 39121410 |
| UPC: | 04008190004866 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$129.50 / 5Each
Typical price:$143.84 / Each
Quantity:
- Klippon Feed-Through Terminal Block, 2-Stud, Series: W Series, 1 kV AC, 269 A, 10 AWG to 250 kcmil Wire, 120 sq-mm Terminal, 10 to 20 N-m, Snap-Fit Mount, Threaded/Stud, -50 to 120 deg C, Wemid, Dark Beige, 5.197 in H x 1.654 in W x 2.835 in D
1028500000 Item Features
- The W-Series is offered in standard and compact designs and he compact design is impressive with its small size for the design cross-sectional capacity
- The terminal unit consists of hardened steel, for very high contact force and he busbar is made of copper, which gives a low voltage drop
- Uniform size of the terminal block bodies from 2.5 to 10 sq-mm means fewer accessories, lowers the cost, offers logistical advantages and enables simple installation
- Safe operation
- UL 94 flammability rating V-0
- 1 number of levels, 2 number of clamping points per level
- Explosion-tested version, closed open sides
- 0.12 mOhm volume-resistance
- 8 kV rated impulse withstand voltage
- WFF 120 type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
1028500000 Standards
CSA Certified|CSAEX Certified|UL File No. E60693 Listed|RoHS CompliantSKU #2260800Part Number #1028500000UNSPSC39121410UPC04008190004866
Image provided may only be a representation of final product and may include optional equipment
