1028900000

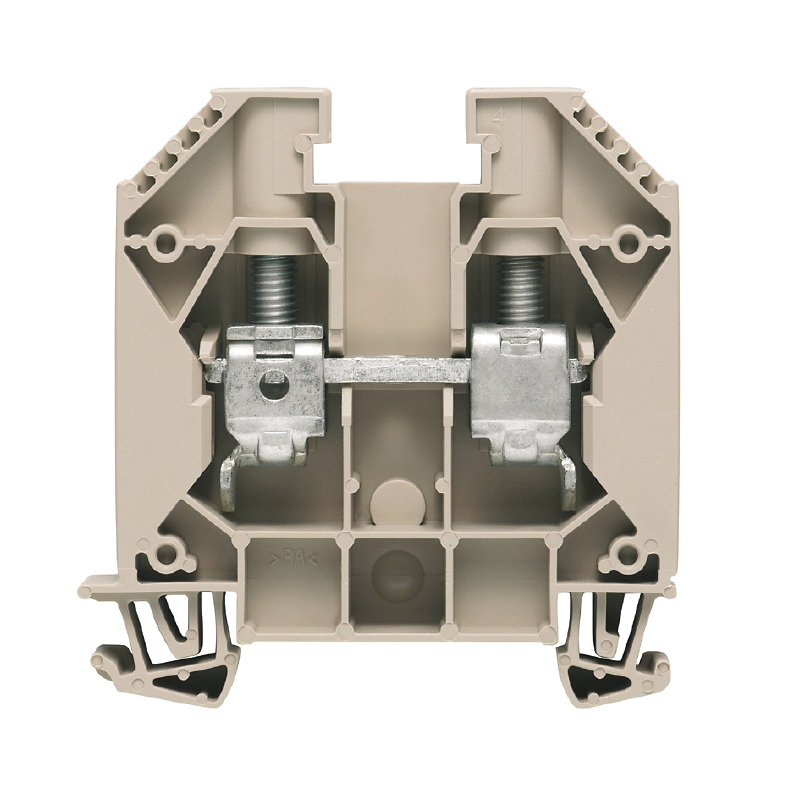

Weidmuller 1028900000 Electrical Terminal
Part Number # 1028900000
SKU # 2139789
$199.00 / 50Each
Typical price:$220.75 / Each
Weidmuller 1028900000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1028900000 |
| SKU #: | 2139789 |
| Dimensions: | 2.362 in H x 0.469 in W x 2.461 in D |
| Terminal Size: | 16 sq-mm |
| Torque Rating: | 3 to 4 N-m |
| Wire Size: | 14 to 6 AWG |
| UNSPSC: | 39121410 |
| UPC: | 04008190034443 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$199.00 / 50Each
Typical price:$220.75 / Each
Quantity:
- Klippon Feed-Through Terminal Block, 1-Tier, Series: W Series, 1 kV AC, 76 A, 14 to 6 AWG Wire, 16 mm Wire Strip Length, 16 sq-mm Terminal, 3 to 4 N-m, Snap-Fit Mount, Screw, -60 to 130 deg C, Wemid, Dark Beige, 2.362 in H x 0.469 in W x 2.461 in D
1028900000 Item Features
- The W-Series is offered in standard and compact designs and he compact design is impressive with its small size for the design cross-sectional capacity
- The terminal unit consists of hardened steel, for very high contact force and he busbar is made of copper, which gives a low voltage drop
- Uniform size of the terminal block bodies from 2.5 to 10 sq-mm means fewer accessories, lowers the cost, offers logistical advantages and enables simple installation
- Safe operation
- UL 94 flammability rating V-0
- 1 number of potentials, 1 number of levels, 2 number of clamping points per level
- Explosion-tested version, right open sides
- 1 x 5.5 mm blade
- 0.42 mOhm volume-resistance
- For screwable cross-connection, with assembly peg, one end without connector
- 8 kV rated impulse withstand voltage
- WDU 16/ZA type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
1028900000 Standards
CSA Certified|CSAEX Certified|UL File No. E60693 Listed|IEC 60947-7-1|RoHS CompliantSKU #2139789Part Number #1028900000UNSPSC39121410UPC04008190034443
Image provided may only be a representation of final product and may include optional equipment
