Brand: Weidmuller
1031400000

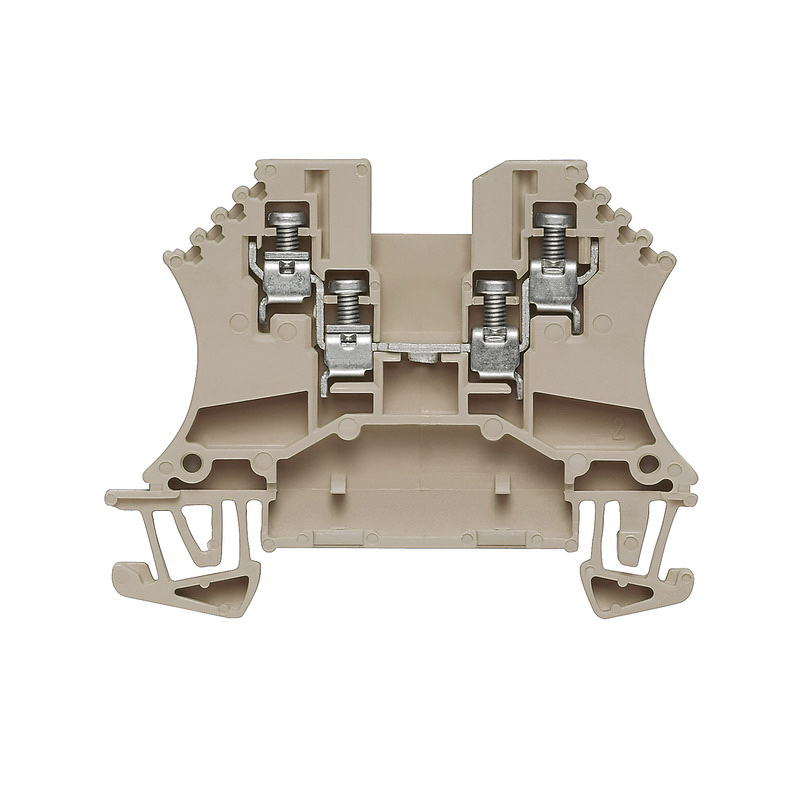

Weidmuller 1031400000 Klippon Feed-Through Terminal Block
Part Number # 1031400000
SKU # 1735252
$341.00 / 100Each
Typical price:$370.70 / Each
Weidmuller 1031400000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1031400000 |
| SKU #: | 1735252 |
| Amperage Rating: | 17.5 A |
| Dimensions: | 2.362 in H x 0.201 in W x 1.831 in D |
| Series: | W Series |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Terminal Size: | 1.5 sq-mm |
| Torque Rating: | 0.4 to 0.6 N-m |
| Type: | 1-Tier |
| Wire Size: | 26 to 14 AWG |
| Color: | Dark Beige |
| Connection type: | Screw |
| Country of origin: | USA |
| Material: | Wemid |
| Mounting type: | Snap-On |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190148546 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$341.00 / 100Each
Typical price:$370.70 / Each
Quantity:
Weidmuller 1031400000 Klippon Feed-Through Terminal Block
Brand: Weidmuller
Part Number: 1031400000
Additional Description: WEID-1031400000 (D) WDU 1.5/ZZ FEED-THROUGH TERMINAL BLOCK, SCREW CONNECTION, 1.5 MM, 800 V, 17.5 A, NUMBER OF CONNECTIONS: 4
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
1031400000 Item Features
- The W-Series is offered in standard and compact designs and he compact design is impressive with its small size for the design cross-sectional capacity
- The terminal unit consists of hardened steel, for very high contact force and he busbar is made of copper, which gives a low voltage drop
- Uniform size of the terminal block bodies from 2.5 to 10 sq-mm means fewer accessories, lowers the cost, offers logistical advantages and enables simple installation
- Safe operation
- UL 94 flammability rating V-0
- 1 number of potentials, 1 number of levels, 4 number of clamping points per level
- Explosion-tested version, right open sides
- 0.6 x 3.5 mm blade
- 1.83 mOhm volume-resistance
- Twin connection, for plug-in cross-connector, one end without connector
- 8 kV rated impulse withstand voltage
- WDU 1.5/ZZ type
1031400000 Standards
CSA Certified|UL File No. E60693 Listed|IEC 60947-7-1|RoHS CompliantSKU #1735252Part Number #1031400000UNSPSC39121410UPC04008190148546
