1038500000
Weidmuller 1038500000 Electrical Terminal
Part Number # 1038500000
SKU # 2356191
$248.00 / 50Each
Typical price:$275.50 / Each
Weidmuller 1038500000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1038500000 |
| SKU #: | 2356191 |
| Amperage Rating: | 18.5 A |
| Dimensions: | 58 mm H x 7.62 mm W x 52.5 mm D |
| Series: | W Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Terminal Size: | M2.5 |
| Type: | Double Tier Feed-Through Modular |
| Wire Size: | 2.5 sq-mm |
| Connection type: | Screw |
| Country of origin: | CZ |
| Material: | Wemid |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190861179 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$248.00 / 50Each
Typical price:$275.50 / Each
Quantity:
- Klippon Terminal Block, Double Tier Feed-Through Modular, Series: W Series, 400 V, 18.5 A, 2.5 sq-mm Wire, 10 mm Wire Strip Length, M2.5 Terminal, Snap-Fit Mounting, Screw Connection, -50 to 120 deg C, Wemid, Dark Beige, 58 mm H x 7.62 mm W x 52.5 mm D Dimensions
1038500000 Item Features
- Klippon connect with clamping yoke technology
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
1038500000 Standards
RoHS Compliant|UL 94 V-0 Flammability Rating|CE Certified|EAC CertifiedSKU #2356191Part Number #1038500000UNSPSC39121410UPC04008190861179

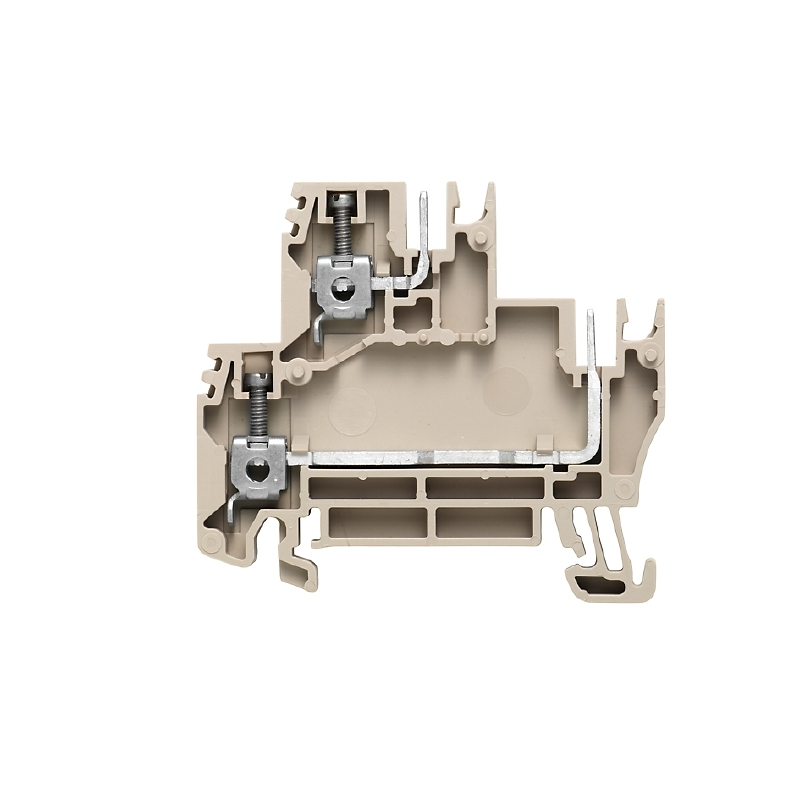

Image provided may only be a representation of final product and may include optional equipment
