Weidmuller 1059660000 Electrical Terminal
Part Number # 1059660000
SKU # 2320014
1059660000
Weidmuller 1059660000 Electrical Terminal
Part Number # 1059660000
SKU # 2320014
Weidmuller 1059660000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1059660000 |
| SKU #: | 2320014 |
| Dimensions: | 2.968 in H x 0.276 in W x 0.709 in D |
| Finish: | Yellow |
| Suitable For Use With: | WDU Series Terminals |
| UNSPSC: | 39121410 |
| UPC: | 04008190002411 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1059660000 Electrical Terminal
Brand: Weidmuller
Part Number: 1059660000

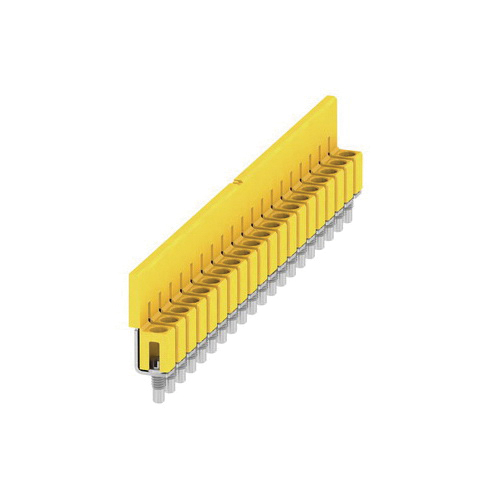

Weidmuller Cross-Connector, Series: W Series, 15 Poles, For Use With: WDU Series Terminals, Polyamide 66, Yellow, 2.968 in H x 0.276 in W x 0.709 in D
Additional Description: WEID-1059660000 WQV 2.5/15 CROSS-CONNECTOR (TERMINAL), WHEN SCREWED IN, NUMBER OF POLES: 15, PITCH IN MM: 5.10, INSULATED: YES, 32 A, YELLOW
Catalog Description: Cross-connector for feed-through terminal blocks for potential distribution or transmission of signals.
1059660000 Item Features
- -50 to 100 deg C operating temperature
- UL 94 flammability rating V-2
- Screwed fixing
- Direct mounting installation
- 0.4 to 0.8 Nm tightening torque for fixing screw
- 32 A rated current
- 5.1 mm pitch
- High reliability and variety of designs of the terminal blocks with clamping-yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
- For use with WDU 1.5 ZZ, WDU 1.5 BLZ, WDU 2.5/1.5 ZR, WDU 2.5, WDU 2.5 F, WDK 2.5, WDK 2.5 V, WDK 2.5 DU-PE, WDK 2.5 F terminal
- WQV 2.5 type
1059660000 Standards
RoHS CompliantSKU #2320014Part Number #1059660000UNSPSC39121410UPC04008190002411
Image provided may only be a representation of final product and may include optional equipment
