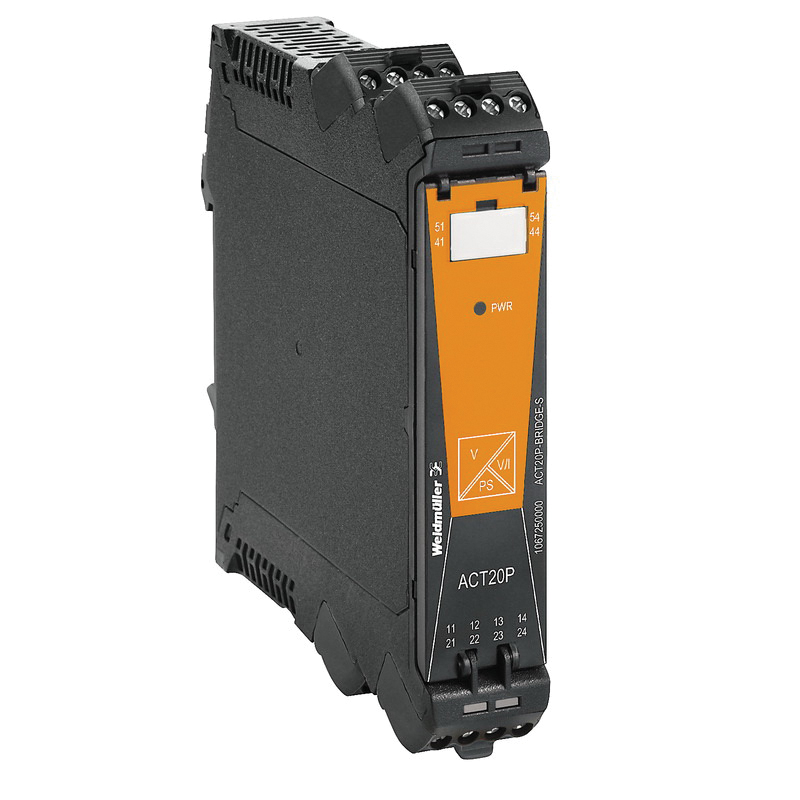

Weidmuller 1067250000 Measuring Bridge Converter, 0 to 11 VDC Output, 3 W Power Rating, PLC Input
Part Number # 1067250000
SKU # 2226333
$387.70 / Each
Weidmuller 1067250000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1067250000 |
| SKU #: | 2226333 |
| Dimensions: | 4.614 in H x 0.886 in W x 4.472 in D |
| Input Type: | PLC |
| Response Time: | <400 ms |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Connection type: | Thread |
| Country of origin: | AU |
| Input current: | 120 mA |
| Mounting type: | DIN Rail |
| Output current: | 0 to 22 mA |
| Output voltage: | 0 to 11 VDC |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121020 |
| UPC: | 04032248820856 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$387.70 / Each
Quantity:
Weidmuller 1067250000 Measuring Bridge Converter, 0 to 11 VDC Output, 3 W Power Rating, PLC Input
Brand: Weidmuller
Part Number: 1067250000
Weidmuller Measuring Bridge Converter, PLC Input, 0 to 11 VDC Output, 120 mA Input Current, 0 to 22 mA Output, 3 W, Threaded, DIN Rail Mount, -40 to 70 deg C, <400 ms Response, +/-0.05% Accuracy, 4.614 in H x 0.886 in W x 4.472 in D
Additional Description: WEID-1067250000 ACT20P BRIDGE SIGNAL CONVERTER/INSULATOR, SCREW CONNECTION, INPUT : RESISTANCE MEASURING BRIDGE, OUTPUT : 0(4)-20 MA, 0-10 V
1067250000 Item Features
- Precise and highly functional signal converters
- Simple configuration via display (Pro DCDC II), FDT/DTM software or DIP switch
- Release levers simplify handling
- More space in the control cabinet, from 12.5 mm wide for two channels
- 10 to 90% humidity
- -40 to 85 deg C storage temperature
- +/-10/20/30/50 mVDC input measurement range
1067250000 Standards
cULus Listed|EAC Certified|RoHS CompliantSKU #2226333Part Number #1067250000UNSPSC39121020UPC04032248820856
