Part Number # 1081530000
SKU # 2344848
1081530000

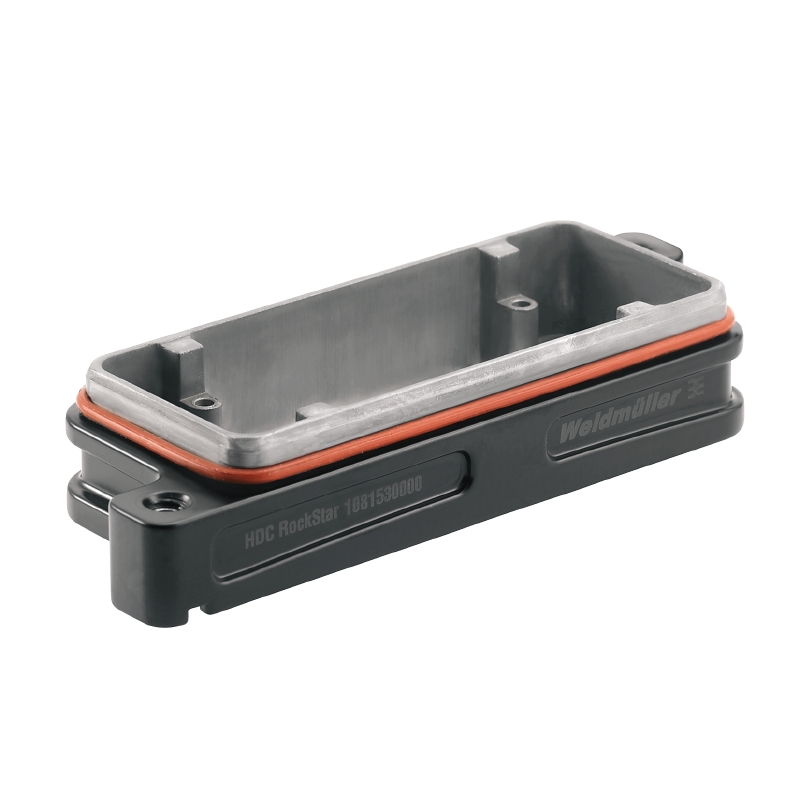

Weidmuller 1081530000 Electrical Plug
Part Number # 1081530000
SKU # 2344848
Weidmuller 1081530000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1081530000 |
| SKU #: | 2344848 |
| Dimensions: | 29.5 mm H x 58 mm W x 164 mm D |
| Specifications: | SZ 6, 32 mm H x 103 mm W Mounting, IP68/IP69K Degree of Protection |
| Suitable For Use With: | ModuPlug Modular System and RockStar Heavy Duty Connector |
| Temperature Rating (Degrees F): | -50 to 125 deg C |
| Type: | Bulkhead EMC Industry Plug-In Standard |
| UNSPSC: | 32151901 |
| UPC: | 04032248843992 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1081530000 Electrical Plug
Brand: Weidmuller
Part Number: 1081530000
Weidmuller Open Connector Base, Bulkhead EMC Industry Plug-In Standard, Bottom Entry Position, Panel Mounting, For Use With: ModuPlug Modular System and RockStar Heavy Duty Connector, -50 to 125 deg C, Specifications: SZ 6, 32 mm H x 103 mm W Mounting, IP68/IP69K Degree of Protection, Die Cast Aluminum, Black, Powder Coated, 29.5 mm H x 58 mm W x 164 mm D Dimensions
Additional Description: WEID-1081530000 (N) HDC IP68 16B AS HOUSING (INDUSTRY PLUG-IN CONNECTORS), BULKHEAD HOUSING, CLAMPING YOKE CONNECTION, SIZE: 6, IP66 (IN PLUGGED CONDITION), IP68 (IN PLUGGED CONDITION)
Catalog Description: The special die-cast alloy and multi-layered surface sealing provide complete protection for the enclosure.
1081530000 Application
Transport and Traffic Engineering, Energy Technology and Extreme Protection Class Requirement Applications1081530000 Item Features
- Clamping yoke connection
- The new RockStar enclosures are resistant to seawater and offer a high degree of shock resistance, meet IP68 and IP69K and have been developed for use under extreme environmental conditions and designed for the high vibration requirements according to DIN EN 61373 cat. 2 (bogie)
- As such, this housing family is ideally suited for fault and maintenance-free operation of heavy duty connectors in transport and traffic engineering as well as in power engineering and in applications with extreme requirements
- During development, measures were also implemented to make the enclosures extremely EMC-resistant
1081530000 Standards
RoHS Compliant|CE CertifiedSKU #2344848Part Number #1081530000UNSPSC32151901UPC04032248843992
Image provided may only be a representation of final product and may include optional equipment
