Part Number # 1082390000
SKU # 2413906
Image Disclaimers Message
1082390000

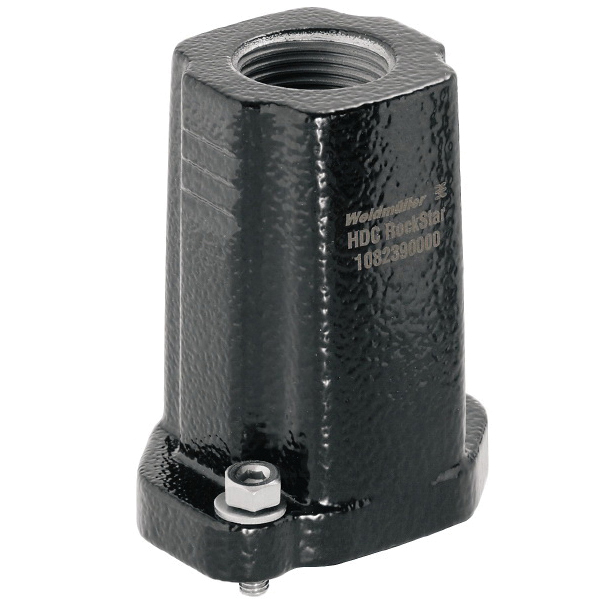

Weidmuller 1082390000 Hood
Part Number # 1082390000
SKU # 2413906
$21.86 / Each
Typical price:$23.36 / Each
Weidmuller 1082390000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1082390000 |
| SKU #: | 2413906 |
| Dimensions: | 60 mm H x 36 mm W x 50 mm D |
| Entry Type: | M20 |
| Finish: | Powder Coated |
| Specifications: | IP68/IP69K Degree of Protection, Clamping Yoke Connection, 2.2 N-m Tightening Torque, SZ 1 |
| Suitable For Use With: | RockStar Plug Housing and HDC Enclosure |
| Temperature Rating (Degrees F): | -50 to 125 deg C |
| Type: | Standard |
| Color: | Black |
| Country of origin: | CN |
| Material: | Die Cast Aluminum |
| Mounting type: | Threaded |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04032248845491 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$21.86 / Each
Typical price:$23.36 / Each
Quantity:
Weidmuller 1082390000 Hood
Brand: Weidmuller
Part Number: 1082390000
Additional Description: WEID-1082390000 HDC IP68 04A TOS 1M20 HOUSING (INDUSTRY PLUG-IN CONNECTORS), PLUG HOUSING, CLAMPING YOKE CONNECTION, SIZE: 1, IP66 (IN PLUGGED CONDITION), IP68 (IN PLUGGED CONDITION)
Catalog Description: The special die-cast alloy and multi-layered surface sealing provide complete protection for the enclosure.
1082390000 Application
For fault and maintenance free operation of heavy duty connectors in transport and traffic engineering as well as in power engineering and in applications with extreme requirements1082390000 Item Features
- New RockStar enclosures are resistant to seawater and offer a high degree of shock resistance, meet IP68 and IP69K and have been developed for use under extreme environmental conditions and designed for the high vibration requirements according to DIN EN 61373 cat. 2 (bogie)
- During development, measures were also implemented to make the enclosures extremely EMC-resistant
1082390000 Standards
RoHS Compliant|CE Certified|DNV-GL ApprovedSKU #2413906Part Number #1082390000UNSPSC32151901UPC04032248845491
