1090140000
Weidmuller 1090140000 Terminal Block
Part Number # 1090140000
SKU # 2248974
$229.68 / 36Each
Typical price:$264.56 / Each
Weidmuller 1090140000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1090140000 |
| SKU #: | 2248974 |
| Connector Type: | Solder |
| Dimensions: | 0.587 in H x 1.98 in W x 1.114 in D |
| Series: | BV/SV 7.62HP |
| UNSPSC: | 39121410 |
| UPC: | 04032248861637 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$229.68 / 36Each
Typical price:$264.56 / Each
Quantity:

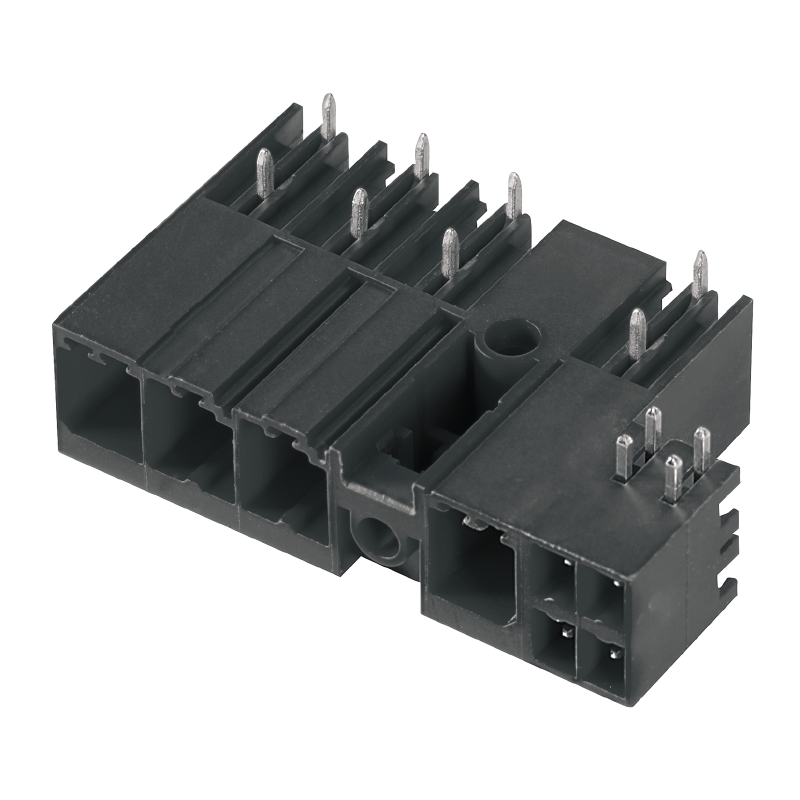

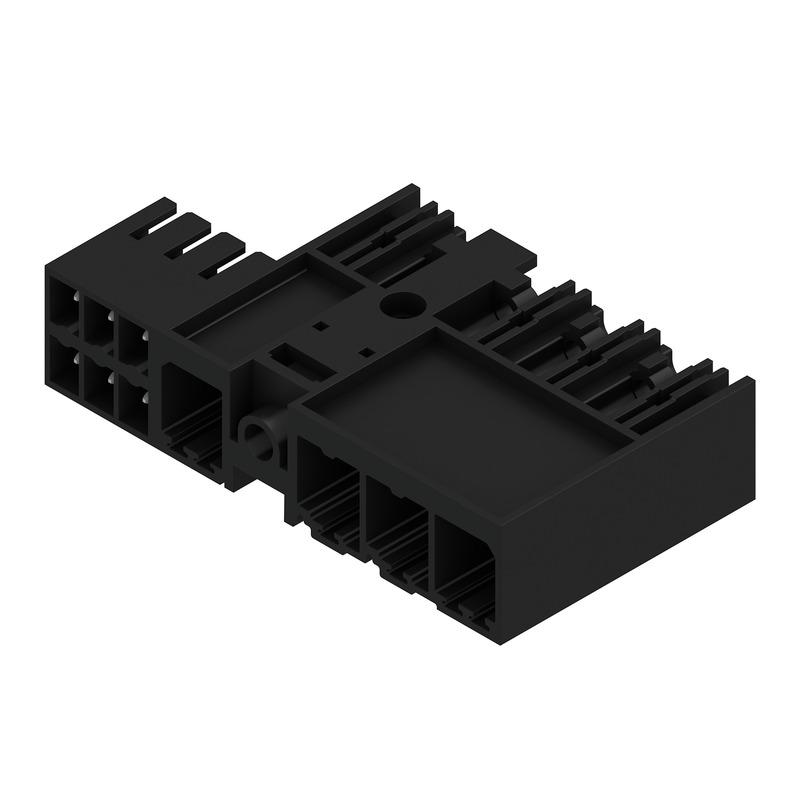

- Weidmuller, 1090140000, PCB Plug-in Connector, Board connection, Series: BV/SV 7.62HP, 4 Positions, 1 Rows, 0.3 in Pitch/Row Spacing, 600 V, THT Solder Termination, Copper alloy Contact, PA GF Housing Material, -50 to 130 deg C, Black, 0.587 in H x 1.98 in W x 1.114 in D Dimensions
1090140000 Item Features
- Combined 270 deg male header with power and signal contacts incl
- Self-locking middle flange interlock with a 7.62 pitch
- Enables simultaneous connection of power, signals and (optional) EMC shielding
- Ideal for connecting servo and asynchronous drives
- Without a female header, the mating profile guarantees minimum power-contact touch-safety of greater than 3 mm with 20 N pressure on the test finger
- The self-locking middle flange reduces the space requirements by one pitch width in comparison with conventional solutions
- Optionally on request without flange fastening, with additional screw mount or with soldered flange fastening
1090140000 Standards
RoHS Compliant|CSA Certified|cURus Listed|EAC CertifiedSKU #2248974Part Number #1090140000UNSPSC39121410UPC04032248861637
Image provided may only be a representation of final product and may include optional equipment
