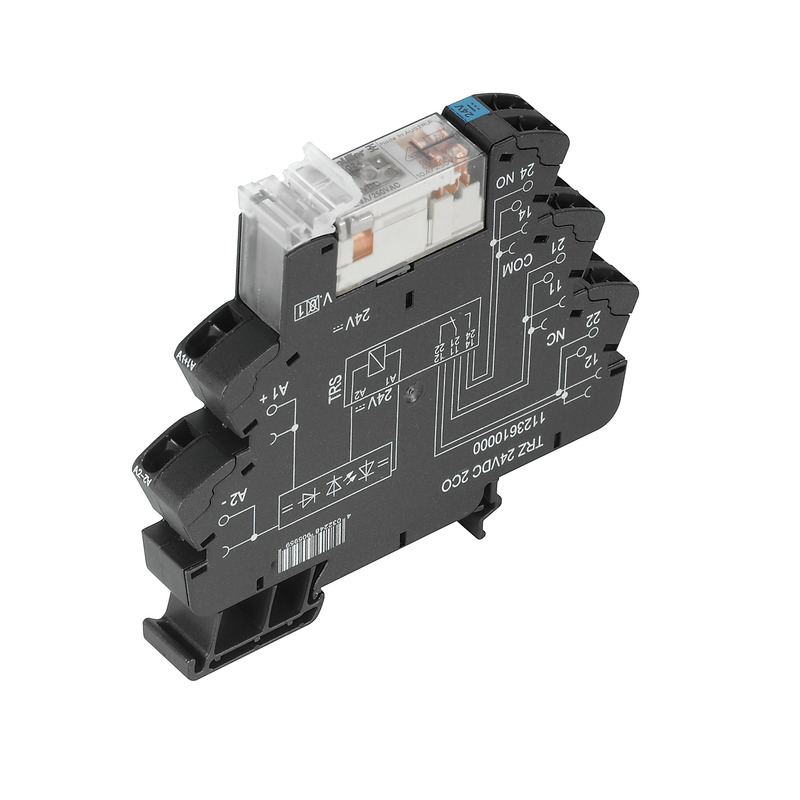

Weidmuller 1123610000 Socket Relay
Part Number # 1123610000
SKU # 2316575
$159.30 / 10Each
Weidmuller 1123610000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1123610000 |
| SKU #: | 2316575 |
| Amperage Rating: | 8 A |
| Coil Voltage: | 24 VDC |
| Contact Form: | 2CO |
| Dimensions: | 90.5 mm H x 12.8 mm W x 87.8 mm D |
| Enclosure Type: | IP20 |
| Series: | TERMSERIES |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Terminal Type: | Tension Clamp |
| Country of origin: | CN |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39122325 |
| UPC: | 04032248905959 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$159.30 / 10Each
Quantity:
Weidmuller 1123610000 Socket Relay
Brand: Weidmuller
Part Number: 1123610000
Additional Description: WEID-1123610000 TRZ 24VDC 2CO RELAY MODULE, 24 V DC ±20 %, GREEN LED, FREE-WHEELING DIODE, REVERSE POLARITY PROTECTION, 2 CO CONTACT (AGNI) , 250 V AC, 8 A, TENSION-CLAMP CONNECTION, TEST BUTTON AVAILABLE: NO
Catalog Description: Assembly of plug-in relay and plug-in socket. Control circuit and load circuit are electrically isolated.
1123610000 Item Features
- Space saving, just 12.8 mm modular width
- AgNi contact
- Slim design with 6.4 mm or 12.8 mm W
- Distinctive fiber optic illuminated status display
- 5 cross connection levels
- Clear marking
- Pluggable relays and SSRs
- Wide range of accessories
- https://www.youtube.com/watch?v=CbUO3LxUzYc&feature=youtu.be
1123610000 Standards
RoHS Compliant|UL File No. E141197|REACH SVHC Lead 7439-92-1|cULus File No. E141197|EN 50178, EN 55011, EN 61000-6-1, 2, 4|DNV-GL TAA00001E05|CE Certified|EAC CertifiedSKU #2316575Part Number #1123610000UNSPSC39122325UPC04032248905959
