1143000000

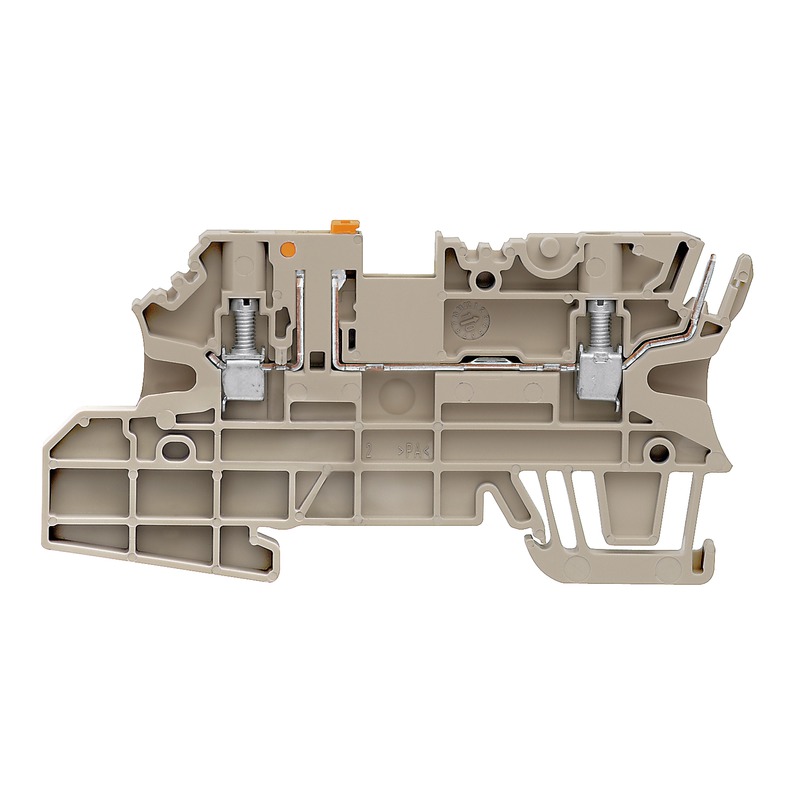

Weidmuller 1143000000 Electrical Terminal
Part Number # 1143000000
SKU # 2292053
$351.00 / 50Each
Typical price:$390.10 / Each
Weidmuller 1143000000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1143000000 |
| SKU #: | 2292053 |
| Amperage Rating: | 20 A |
| Dimensions: | 90 mm H x 5.08 mm W x 44.5 mm D |
| Series: | W Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Terminal Type: | Test Disconnect |
| Torque Rating: | 0.5 to 0.6 N-m |
| Wire Size: | 26 to 12 AWG |
| Connection type: | Plug-In/Screw |
| Country of origin: | RO |
| Material: | Wemid |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04032248926213 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$351.00 / 50Each
Typical price:$390.10 / Each
Quantity:
- Klippon Pluggable Terminal Block, Series: W Series, 250 V, 20 A, 26 to 12 AWG Wire, 10 mm Wire Strip Length, Test Disconnect Terminal, 0.5 to 0.6 N-m Torque, Snap-Fit Mounting, Plug-In/Screw Connection, -50 to 120 deg C, Wemid, Dark Beige, 90 mm H x 5.08 mm W x 44.5 mm D Dimensions
1143000000 Item Features
- Weidmuller new WMF (Weidmuller multi-functional) line of terminal blocks provide a multi-functional solution for routing and distributing signals
- Space saving terminal combines all the necessary functionality into a single solution
- It features an integrated shield connection and can be used with feed-through, fuse and disconnect functionality
- The three cross connection channels and wide variety of labeling options offer additional flexibility
1143000000 Standards
CSA Certified|RoHS Compliant|EAC Certified|UL File No. E60693|cULus Recognized|IEC 60947-7-1|IEC 61984|UL 94 V-0 Flammability RatingSKU #2292053Part Number #1143000000UNSPSC39121410UPC04032248926213
Image provided may only be a representation of final product and may include optional equipment
